A radiomics nomogram for preoperatively predicting prognosis of patients in hepatocellular carcinoma
Original Article

A radiomics nomogram for preoperatively predicting prognosis of patients in hepatocellular carcinoma

Jie Peng1, Xiaolong Qi2, Qifan Zhang3, Zhijiao Duan1, Yikai Xu4, Jing Zhang4, Yanna Liu2, Jie Zhou3, Li Liu1

1Hepatology Unit and Department of Infectious Diseases, 2Department of General Surgery, 3Department of Hepatobiliary Surgery, 4Department of Medical Imaging Center, Nanfang Hospital, Southern Medical University, Guangzhou 510515, China

Contributions: (I) Conception and design: L Liu, J Peng, J Zhou; (II) Administrative support: None; (III) Provision of study materials or patients: L Liu, J Peng; (IV) Collection and assembly of data: J Peng, X Qi, Q Zhang, Z Duan, Y Xu, J Zhang; (V) Data analysis and interpretation: L Liu, J Peng, J Zhou; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Li Liu, MD, PhD. Hepatology Unit and Department of Infectious Diseases, Nanfang Hospital, Southern Medical University, Guangzhou 510515, China. Email: liuli.fimmu@gmail.com; Jie Zhou, MD, PhD. Department of Hepatobiliary Surgery, Nanfang Hospital, Southern Medical University Guangzhou 510515, China. Email: jacky@smu.edu.cn.

Background: Increasing studies have indicated that biomarkers based on quantitative radiomics features are related to clinical prognosis across a range of cancer types, but the association between radiomics and prognosis in hepatocellular carcinoma (HCC) is unclear. We aimed to develop and validate a radiomics nomogram for the preoperative prediction of prognosis for patients with HCC undergoing partial hepatectomy.

Methods: In total, 177 patients were randomly divided into training (n=113) and validation (n=64) cohorts. A total number of 980 radiomics features were extracted from computed tomography images. And the least absolute shrinkage and selection operator algorithm was used to select the optimal features and build a radiomics signature in the training set. Besides, a radiomics nomogram was developed using multivariate regression analysis. The performance of the radiomics nomogram was estimated regarding its discrimination and calibration abilities, and clinical usefulness.

Results: The radiomics signature was significantly associated with disease-free survival (DFS) (P<0.001 and P=0.00013, respectively) and overall survival (OS) (both P<0.0001) in two cohorts. Additionally, the radiomics nomogram showed good discrimination calibration, and clinical usefulness both in the training and validation cohorts.

Conclusions: The proposed radiomics nomogram showed excellent performance for the individualized and non-invasive estimation of DFS, which may help clinicians better identify patients with HBV-related HCC who can benefit from the surgery.

Keywords: Hepatocellular carcinoma (HCC); prognosis; radiomics nomogram


Submitted Dec 09, 2017. Accepted for publication Jun 15, 2018.

doi: 10.21037/tcr.2018.06.18


Introduction

Hepatocellular carcinoma (HCC) is the sixth most common cancer and ranks second as a major cause of cancer-related deaths globally (1,2). Moreover, its incidence has continuously increased in recent years. Approximately 850,200 new cases of HCC are diagnosed annually worldwide, and more than half of these patients are in China (3). Almost 70–90% of HCC cases are related to hepatitis B virus (HBV) infection, which is highly endemic in Asia-Pacific regions, particularly China (4). Partial hepatectomy is among the potential curative therapies in limited patients. However, the 5-year recurrence rate of HCC complicates 70% of cases after surgical therapies, and the overall time is still unsatisfactory (5,6). As such, screening patients who would benefit more from liver resection surgery is imperative.

Although the Barcelona Clinic Liver Cancer (BCLC) stage for HCC plays a crucial role in estimating prognosis, by facilitating treatment stratification, it may not be sufficiently precise (7,8). Moreover, studies have reported that various clinical risk factors, such as aspartate transaminase (AST), alpha-fetoprotein (AFP), and microvascular invasion were associated with poor survival (9-12). However, the clinical utility of these factors is limited. Thus, to facilitate individualized treatment strategies, a new tool to accurately identify patients who would have poor prognosis after partial hepatectomy is urgently needed.

Radiomics is an emerging and promising field that involves the extraction of several quantitative features from digital images, such as magnetic resonance imaging (MRI) or computed tomography (CT) (13,14). Several studies have determined the relationship between radiomics feature and the underlying pathophysiology (15-17). By converting medical images into high-dimensional and extractable data, radiomics algorithms provide an unprecedented opportunity to improve decision-making in oncology at a low-cost and in a noninvasive pattern, which helps oncologists to deliver more individualized medical care that considers phenotypic patient subtypes. A recent study reported that a radiomics nomogram can predict preoperative lymph node metastasis in patients with colorectal cancer (18). Previous studies have also indicated that biomarkers based on quantitative radiomics features are related to clinical prognosis and underlying genomic patterns across a range of cancer types (19,20). Besides, a recent study demonstrated that a radiomics signature, based on CT texture assessments, was a predictive biomarker for 2-year recurrence in patients with HCC (21). However, the association between radiomics signature and disease-free survival (DFS) in HBV-related HCC patients after partial hepatectomy has not been reported yet (22,23).

The present study aimed to develop and validate a radiomics model of personalized, non-invasive evaluation of DFS in HCC patients after hepatectomy treatment.


Methods

Patients

This retrospective study was approved by our institutional review board and Ethical Committee (NFEC-201208-K3). Informed consents were signed from patients or family members. Our study included consecutive patients in our center between Jan 2006 and Nov 2013 who met the following criteria: (I) pathologically proven HCC; (II) receive partial hepatectomy; (III) availability of 3-phase dynamic CT imaging within 7 days before surgery; and (IV) complete clinical and follow-up data. Besides, the exclusion criteria were as follows: (I) locoregional therapies, such as radiofrequency ablation and radiotherapy, or liver transplantation; (II) other liver malignant tumor; (III) two or more tumor diseases. We randomly divided the included patients into a training cohort and a validation cohort in a 2:1 ratio. Pretreatment clinical characteristics were collected from electronic medical records. Institutional review board approval was achieved for this study. Recruitment pathways for patients and flowchart for the process of model development and validation were shown in Figures S1,S2, respectively.

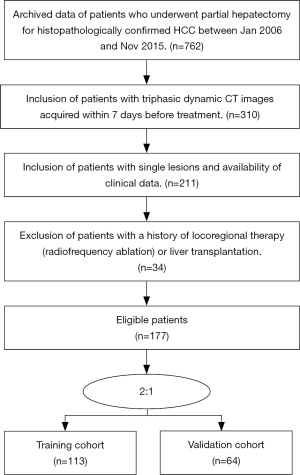

Figure S1 Recruitment pathways for patients.
Figure S2 Flowchart for the process of model development and validation.

Follow-up

DFS and overall survival (OS) were the primary and secondary end points of this study, respectively. DFS was defined as the time from the day of the partial hepatectomy until either the date of relapse, death, or the patient was last known to be free of recurrence (censored). Meanwhile, OS was defined as the time from surgery treatment to death from any cause. Follow-up visits were conducted every 3 months during the first 2 years, and every 6 months for the next 3–5 years. All local recurrences were confirmed via MRI or CT at our center.

CT acquisition, region-of-interest segmentation, and radiomic feature extraction

Preoperative CT images were collected via a Picture Archiving and Communication System (PACS; Nanfang Hospital Network Center, China). More detailed information is shown in the Supplementary information.

Tumor regions of interest (ROIs) were semi-automatically segmented in the largest cross-sectional area using the IBEX software package (open source, source-code version) (24). Texture extraction was performed using IBEX software In total, 980 imaging features were extracted from the hepatic-arterial and portal-venous images, including intensity direct, intensity histogram, gray level run length matrix (GLRLM), gray level co-occurrence matrix (GLCM), neighbor intensity difference, and shape features. More information about the methodology for radiomics feature extraction can be found in Supplementary Method. Tumor ROIs were independently and manually segmented by an abdominal radiologist who had 12 years’ experience (reader 1) and another senior radiologist who had 22-year experience (reader 2). The both radiologists were blinded to the pathological results of the patients.

Inter- and intra-observer reproducibility analysis

Inter-observer and intra-observer reproducibility of ROI segmentation and radiomic feature extraction were assessed using intra-and inter-class correlation coefficients (ICCs) in portal-venous images of 44 consecutive patients. To evaluate the intra-observer reproducibility, 2 radiologists independently segmented the ROIs of the 44 cases. Both readers generated the radiomic features twice with at least one-week interval between two readings to assess the inter-observer reproducibility. An ICC greater than 0.75 indicates a good agreement of the feature extraction. These values of many radiomic features, which describe the shape and size of the ROIs, can also be applied for evaluating the overall inter- and intra-observer agreement of the ROIs.

Feature selection and radiomics signature development

Using the least absolute shrinkage and selection operator (LASSO) algorithm, we built a logistic model and selected the λ in the smallest cross-validation error. Finally, a Rad-score formula was defined based on the 19 selected features. A radiomics signature was then constructed via the Rad-score. Using Kaplan-Meier survival analysis, we evaluated the potential relation between the radiomics signature and prognosis (DFS and OS) in the training and validation cohorts. The optimal cut-off value of Rad-score was determined using X-tile in DFS analysis.

Development and validation of the radiomics nomogram

Multivariate regression analysis was performed to find a radiomics nomogram as a quantitative model to predict DFS. Candidate predictors of DFS were radiomics signature, BCLC stage, and AFP level.

The performance of the nomogram was evaluated in the internal validation cohort. DFS was then evaluated considering the total points as a factor in the Cox regression analysis. Finally, the C-index and calibration curves were derived using Cox regression analysis. Harrell’s C-index was evaluated to quantify the discrimination capability of the radiomics nomogram in the training cohort. The radiomics nomogram was internally validated using 10,000 bootstrap samples to achieve an optimism corrected performance.

Clinical utility

To evaluate the clinical utility of the nomogram, decision curve analysis (DCA) was used to quantify the probabilities of net benefits at different threshold in all patients.

Statistical analysis

All statistical analyses were performed via R statistical software version 3.3.3 (R Core Team, 2017). The “glmnet” package was used to perform the LASSO algorithm. The nomogram and the calibration curve plot were created using the “rms” package. The result of the Kaplan-Meier survival analysis was plotted using the “survminer” package, while that of the DCA was plotted using the “dca.R” package. A two-sided P value of <0.05 was considered statistically significant.


Results

Clinical characteristics

One hundred and seventy-seven patients were finally included in our study, among which 113 patients were allocated to the training cohort and 61 to the validation cohort. The study flowchart for patients in our study is shown in Figure S2, with the baseline clinical characteristics of the training and validation cohorts summarized in Table 1. In the final follow-up, 99 patients (55.9%) had confirmed disease recurrence or died. The mean and median DFS were 22.1 and 16.0 months, respectively. Clinical and follow-up data were not significantly different between the training and validation cohorts (P=0.052–0.991) (Table 1).

Table 1
Table 1 Characteristics of patients in the training and validation cohorts
Full table

Radiomics feature extraction and radiomics signature construction

Flowchart for the radiomics feature extraction process was shown. A total of 980 features were extracted from the hepatic arterial and portal venous CT images and were finally reduced to 19 features (13 from hepatic-arterial images and 6 from portal-venous images) with the LASSO regression model (Figure 1). Based on the radiomic features describing the shape and size of the ROIs, the intra- and the inter-observer ICCs ranged from 0.937 to 0.986 and from 0.935 to 0.985, respectively, indicating favorable intra- and inter-observer feature extraction reproducibility (Table S3).

Figure 1 Tuning parameters for radiomics feature selection in the least absolute shrinkage and selection operator (LASSO) regression model. (A) Feature selection with LASSO using 10-fold cross-validation via minimum criteria; (B) LASSO coefficient analysis of the 980 radiomics features. The 19 coefficients were chosen using 10-fold cross-validation as the vertical line presented in the plot.
Table S3
Table S3 Consistency of ROI radiomics features between inter-observers and intra-observers
Full table

As a result, the radiomics signature, including 19 features was significantly associated with relapse or death in the training cohort (Figure 2). The optimal cut-off value of the Rad-score was 1.32 using the X-tile software in the DFS analysis Figure S3. In the training and validation cohorts, patients with a high Rad-score showed poorer DFS than those with a low Rad-score (HR, 5.132; 95% CI: 2.894–9.100; P<0.0001 and HR, 3.175; 95% CI: 1.442–6.991; P=0.00013, respectively). Furthermore, patients with a high Rad-score also showed poorer OS than those with a low Rad-score (HR, 7.329; 95% CI: 7.352–14.320; P<0.0001 and HR, 6.849; 95% CI: 2.350–19.970; P<0.0001 for both cohorts). The distributions of the Rad-scores and DFS status in the two cohorts and all patients are shown in Figure S4. Meanwhile, the results of the sub-analysis of the survival in BCLC-A, BCLC-B, and BCLC-C stages were shown in Figures S5,S6.

Figure 2 Kaplan-Meier plots showing survival of low-risk and high-risk groups defined by the radiomics signature in both training (A,C) and validation cohorts (B,D). (A) Disease-free survival (DFS) of the training cohort; (B) DFS of the validation cohort; (C) overall survival (OS) of the training cohort; (D) OS of the validation cohort.
Figure S3 Cut-off value of the Rad-score determined by X-tile software in the training cohort.
Figure S4 Rad-score for each patient in the (A) training cohort, (B) validation cohort, and (C) all patients. The positive and negative status of DFS was marked with red and green colors, respectively. DFS, disease-free survival.
Figure S5 Kaplan-Meier plots showing disease-free survival (DFS) of low-risk and high-risk groups defined by the radiomics signature for patients. (A) A significant association of the radiomics signature with DFS was noted in the BCLC-A stage cohort; (B) the radiomics signature was verified in the BCLC-B stage cohort; (C) a significant association of the radiomics signature with DFS was noted in the BCLC-C stage cohort; (D) the radiomics signature was subsequently verified in the combined training and validation cohorts. BCLC, Barcelona Clinic Liver Cancer.
Figure S6 Kaplan-Meier plots showing overall survival (OS) of low-risk and high-risk groups defined by the radiomics signature for patients. (A) A significant association of the radiomics signature with OS was noted in the BCLC-A stage cohort; (B) The radiomics signature was verified in the BCLC-B stage cohort; (C) A significant association of the radiomics signature with OS was noted in the BCLC-C stage cohort; (D) The radiomics signature was subsequently verified in the combined training and validation cohorts.

Development and validation of the radiomics model

Univariate analysis indicated that the radiomics signature, AFP level, and BCLC stage were significantly associated with DFS or OS both in the training and validation cohorts (Table 2,S4). Additionally, the multivariate Cox regression analysis showed that the radiomics signature and BCLC stage were independent predictors of prognosis (Table 3). Notably, AFP level was also an important predictor. Thus, a radiomics nomogram was developed based on the radiomics signature, AFP level, and BCLC stage (Figure 3). This model showed favorable C-indexes of 0.782 (95% CI: 0.730–0.834) and 0.743 (95% CI: 0.657–0.829) for the training and the validation cohorts, respectively (Table 3). Besides, a good agreement between the nomogram-estimated probability and actual DFS status was noted and shown in the calibration curves (Figure 4A,B).

Table 2
Table 2 Univariate analysis of disease-free survival based in the training and validation cohorts
Full table
Table S4
Table S4 Univariate analysis of overall survival in the training cohort and validation cohort
Full table
Table 3
Table 3 Preoperative prediction model of disease-free survival
Full table
Figure 3 Radiomics nomogram that incorporates the radiomics signature, BCLC stage, and AFP level for predicting 1-, 2- and 3-year disease-free survival (DFS) in the training cohort. BCLC, Barcelona Clinic Liver Cancer; AFP, alpha-fetoprotein.
Figure 4 Calibration curves of the radiomics nomogram for 1-, 2-, 3-year disease-free survival (DFS) in the (A) training cohort and (B) validation cohort. The 45-degree black line represents the ideal match between the nomogram-predicted (X-axis) and actual (Y-axis) DFS. Vertical bars indicate 95% confidence intervals.

Clinical utility

The DCA was estimated on the radiomics signature, BCLC stage, and radiomics nomogram, as shown in Figure 5. The decision curve of the radiomics signature and radiomics nomogram showed relatively good performance for the model regarding clinical application. It was indicated from the DCA curve that when the threshold probability of a patient or doctor is 15%, more benefit would be acquired using radiomics nomogram or radiomics signature than either treat-all or treat-none strategies. The probability of achieving DFS ranged from 38% to 80%. Both radiomics nomogram and radiomics signature had higher overall net benefits than the single BCLC stage. Thus, either radiomics nomogram or radiomics signature is more accurate for discriminating patients who could benefit from partial hepatectomy than traditional BCLC staging system.

Figure 5 Decision curve analysis for the radiomics signature, radiomics nomogram, and BCLC stage in all patients (n=177). The y-axis measures the net benefit. The green line represents the radiomics signature. The blue line represents the BCLC stage. The red line represents the radiomics nomogram. The grey line represents the assumption that no patients show disease-free survival (DFS) post-hepatectomy. The black line represents the assumption that all patients have lived or no recurrence post-hepatectomy. The net benefit was calculated by summing the benefits (true-positive results) and subtracting the harms (false-positive results), weighting by the relative harm of undergoing partial hepatectomy compared with the negative consequences of an unnecessary treatment. The decision curve showed that if the threshold probability of a patient or doctor is approximately 15%, more benefit was added than the treat-all-patients scheme or the treat-none scheme by using the radiomics nomogram or radiomics signature to predict DFS in the current study. BCLC, Barcelona Clinic Liver Cancer.

Discussion

In the present study, 82.31% of patients had HBV infection, which is the crucial pathogenic factor of HCC in Asia-Pacific regions (4). Based on pre-treatment CT images of those patients, we developed a radiomics nomogram and validated this model as a tool for noninvasive, individualized prediction of DFS. The easy-to-use radiomics nomogram had an excellent performance and could help health care professionals in clinical decision making.

The precise estimation of DFS via conventional CT images remains challenging in clinical settings. Currently, different staging systems combining image features (e.g., tumor size and number) and clinical risk factors may also perform well (25-28). However, their levels of accuracy are unsatisfactory. We used a radiomics analysis model to transform images into high-dimensional radiomics features, which were used to estimate patient prognosis. We extracted 490 features from each CT image and were then reduced to 19 radiomics features using the LASSO algorithm and chosen via 10-fold cross-validation to develop a radiomics signature. We found that patients with high Rad-score showed significantly poorer DFS or OS than those with low Rad-score. Previous studies also showed that the radiomics signature could be used to predict the prognosis of patients with advanced nasopharyngeal carcinoma or early non-small cell lung cancer (29-32). Similar to previous studies, our study indicated that this novel method predicting prognosis via radiomics features extracted from CT images may help clinicians accurately predict the prognosis of patients with HCC who underwent partial hepatectomy.

The BCLC staging system is a standard tool used for clinical management of HCC and can be used to determine the appropriate therapeutic strategy (33-36). However, treatment recommendations for patients with HCC vary in different staging systems. For example, the BCLC staging classification recommends only transarterial chemoembolization for patients categorized with stage B HCC, while the Japan Society of Hepatology stipulates that partial hepatectomy is feasible for such patients with acceptable prognoses. Therefore, the indications for partial hepatectomy differ among several staging systems. Subgroup analysis in our study showed that the Rad-score generated from the radiomics signature can easily identify stage B patients (classified according to the BCLC system) who would benefit more from the surgery. Interestingly, a small proportion of stage A patients (classified according to the BCLC system) with high Rad-score who underwent partial hepatectomy still have poor DFS, indicating that these patients should be given more attention on re-examination. Moreover, although most stage C patients showed poor prognosis after partial hepatectomy, several patients with low Rad-score also obtained benefit from surgery.

In addition, previous studies have reported that several clinical risk factors, such as high AFP levels and large tumor size, were associated with poor prognosis in HCC patients (37,38). Univariate analysis of DFS and OS in the training and validation cohorts indicated that most clinical risk factors (e.g., age, sex, pre-treatment Child-Pugh classification, pre-treatment hepatocirrhosis status, pre-treatment HBsAg status, pre-treatment alanine aminotransferase, and pre-treatment AST) were not significantly associated with prognosis. However, similar to previous studies, high AFP levels were also significantly associated with poor DFS and OS in both the training and validation cohorts (39-41). Tumor size was associated with DFS and OS in the training cohort, while it was not associated with prognosis in the validation set.

Considering the above factors, we developed a radiomics nomogram that incorporated the radiomics signature, BCLC stage, and AFP level. The nomogram can be a tool for developing an individualized treatment strategy. To the best of our knowledge, the use of pre-treatment radiomics signature for DFS prediction has never been reported. The radiomics model indicated favorable consistency in the training cohort, and the outcome was verified in the validation cohort (C-index, 0.782 and 0.743, respectively), which is shown as a calibration curve. Next, we plotted the decision curve based on the radiomics nomogram, radiomics signature, and BCLC stage in all the patients. DCA indicated that using the radiomics nomogram to estimate DFS when a threshold probability of a patient or doctor is 18%, higher benefits obtained than the overall or no treatment strategy in our study. The probability of achieving DFS with partial hepatectomy in patients classified according to BCLC stage ranges from 38–80%. We also found that both the radiomics nomogram and radiomics signature had higher overall net benefits than BCLC stage alone.

Our study had two limitations. First, the numbers of patients with HCC was relatively small. Second, the data were collected from a single institution. If multicenter cohorts are enrolled and the collective data of different parameters are used, our model may perform differently. Thus, much larger datasets must be collected from multiple centers, and the robustness and reproducibility of our proposed radiomics model needs to be investigated. In summary, our model that comprised of radiomics features, BCLC stage, and AFP levels can serve as a non-invasive and preoperative tool to predict DFS in patients with HBV-related HCC undergoing partial hepatectomy. This model can be used to decide more precise clinical treatments.


Parameters for computed tomography image acquisition

All patients underwent pre-treatment multi-detector row CT (MDCT) scans (SOMATOM and 256-iCT). The acquisition parameters were shown in Table S1.

Table S1
Table S1 Scanning parameters for each scanner
Full table

CT acquisition

Contrast-enhanced computed tomography (CECT) was performed at our hospital with one of the following MDCT scanners: SOMATOM (Siemens Medical Systems, Erlangen, Germany), or Brilliance iCT 256 (Philips Healthcare, Cleveland, OH, USA). The scanning parameters are shown in Table S1. After routine CT scanning, a contrast agent (Ultravist 370, Bayer Schering Pharma, Berlin, Germany, 1.0 mL/kg) was injected into the antecubital vein at the rate of 2.0–3.0 mL/s
via an injector (Ulrich CT Plus 150, Ulrich Medical, Ulm, Germany); a CECT was performed immediately after injection. The hepatic-arterial and portal-venous phase CT images were acquired at 30 and 60 s, respectively. Preoperative CT images were collected on the Picture Archiving and Communication System (PACS; Nanfang Hospital Network Center, China), with an optimal window setting adjustment (window width: 300, window level: 50).


Supplementary methods

In this study, a total number of 980 candidate radiomics features were derived from the arterial and portal-venous phase images with 490 for each. IBEX software package on MATLAB 2014b (Math Works, Natick, MA, USA) was used for feature extraction. The 980 features included intensity direct, intensity histogram, gray level run length matrix (GLRLM), gray level co-occurrence matrix (GLCM), neighbor intensity difference, and shape features.

Nineteen features that were most associated with DFS via a least absolute shrinkage and selection operator (LASSO) method. The features were shown in Table S2.

Table S2
Table S2 The texture type and name of selection radiomic features
Full table

Radiomics score (Rad-score) calculation formula

Rad-score=−2.754e+04

−4.219e−01*A_NeighborIntensityDifference25_Texture Strength

−1.620e−02*A_IntensityHistogram_35PercentileArea

−5.090e−01 *A_IntensityHistogram_Kurtosis

+5.069e−02*A_IntensityDirect_LocalStdMax

−0*A_IntensityDirect_Kurtosis

−2.375e-02*A_IntensityDirect_GlobalMax

+1.653e+04*A_GLCM 25_90-1InverseDiffMomentNorm

+1.105e+04*A_GLCM 25_0-7InverseDiffMomentNorm

+6.111e+00*A_GLCM 25_135-7Correlation

−9.453e−01*A_GLCM 25_90-7Correlation

−6.162e+00*A_GLCM 25_-333-7Correlation

+3.916e+00*A_GLCM 25_45-4Correlation

+9.464e−01*A_GLCM 25_90-7ClusterShade

−2.757e−03*P_IntensityHistogram_10PercentileArea

+1.010e+00*P_IntensityDirect_LocalEntropyMin

−2.321e+01*P_GLCM 25_135-7InformationMeasureCorr1

+1.496e+01*P_GLCM 25_45-1Energy

−2.992e−01*P_GLCM 25_135-7DifferenceEntropy

−4.086e−03*P_GLCM 25_0-1ClusterProminence

P and A indicate that the features were retrieved from portal and arterial phase CT images, respectively.


Acknowledgements

Funding: This work was supported by the National Nature Science Foundation of China (Grant Nos. 81372283, 81472711, 81401180, 81672756, and 91540111), Guangdong Province Universities and Colleges Pearl River Scholar Funded Scheme (2015), and the Natural Science Foundation of Guangdong Province (Grant No. 2014A030311013).


Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: This retrospective study was approved by our institutional review board and Ethical Committee (NFEC-201208-K3). Informed consents were signed from patients or family members.
