Ovarian cancer remains one of the most lethal malignancies worldwide that targets the female reproductive system (1). Although overall survival and progression-free survival have increased after cisplatin-based chemotherapy, nearly 30% of ovarian cancers respond poorly, leading to resistant and recurrent disease (2). Hence, there is a clear unmet medical need to develop novel therapies to target chemo-resistance in patients with ovarian cancer.
FOXM1 belongs to the Forkhead box (Fox) transcription factor family and is an important regulator of the cell cycle (3). This proliferation-specific transcription factor is over-expressed in the majority of human cancers, including lung, gastrointestinal, mammary, glioblastoma, and ovarian cancer (4). Previous studies have shown that the FOXM1 transcription factor and its direct transcriptional targets were significantly altered in 87% of high-grade ovarian cancers (5). FOXM1 promotes cell proliferation, migration and invasion (6) and plays a significant role in chemo-resistance in several solid cancers, including ovarian cancer (7-10). Hence, FOXM1 could be used as an effective drug discovery platform to identify chemo-sensitizing agents (11).
The ARF/INK4A locus encodes two distinct tumor suppressors, the p16INK4A and the 19 kDa alternative reading frame (ARF) protein (14 kDa in human) (12,13). The synthesized (D-Arg)9-p19ARF peptide that consists of amino acids 26-44 of p19ARF protein has been demonstrated to inhibit hepatocellular cancer and osteosarcoma by decreasing FOXM1 transcriptional activity (12,14,15). Furthermore, the ARF peptide inhibitor of FOXM1 sensitized breast cancer cells to Herceptin and paclitaxel treatment (7).
Our previous study demonstrated that FOXM1 contributes to cisplatin response in ovarian cancer cell lines (10). Here, we further investigated the effect of ARF peptide on cisplatin sensitization in SKOV3 ovarian cancer cells with aberrant FOXM1 expression. We found that ARF peptide sensitizes SKOV3 cells to cisplatin in vitro and in vivo.
Cell culture, chemotherapeutic agents and animal models
The human serous ovarian cancer cell lines A2780, SKOV3, ES2, HO8910 (16), and 3AO (17) were purchased from the Cell Bank of the Chinese Academy of Science (Shanghai, China). SKOV3 cells were cultured in Mccoy’s 5A (Hyclone, USA), while all other cell lines were cultured in RPMI 1640 (Hyclone, USA). Media was supplemented with 10% (v/v) fetal bovine serum, 100 units/mL penicillin and 100 µg/mL streptomycin. Cells were maintained at 37 ℃ in a humidified atmosphere containing 5% CO2/95% air. Cisplatin was purchased from Sigma-Aldrich (Louis, MO, USA). Female nu/nu mice (5–6 weeks old, body weight 18–20 g) were purchased from Shanghai Slac Laboratory Animal Co., Ltd. (Shanghai, China) and housed under SPF conditions. Animal procedures were performed in accordance to approved protocols established by the Animal Care and Use Committee of Shanghai Jiao Tong University, School of Medicine.
Western blot analysis
Cells were lysed in radioimmunoprecipitation assay (RIPA) buffer supplemented with phenylmethylsulfonyl fluoride (PMSF). Primary human ovarian surface epithelium (HOSE) cell lysates were purchased from Pricell (Wuhan, China). Protein concentrations were determined using the Pierce™ BCA Protein Assay Kit (Grand Island, NY, USA). Equal amounts of cell lysates (10–20 µg) were resolved by SDS-PAGE and electro-transferred to polyvinylidene difluoride (PVDF) membrane (Millipore). The following antibodies were used for western blotting: human FOXM1 (1:100, Santa Cruz Biotechnology), cleaved caspase-3 (1:1,000, Cell Signaling Technology), PLK1 (1:1,000, Abcam), EXO1 (1:100, Thermo Fisher Scientific), β-actin (1:2,000, Abcam).
Cell viability assay
Cell viability was measured using the Cell Counting Kit-8 assay (Dojindo Molecular Technologies) as previously described (10). Cells were plated at a density of (2–5)×103 cells/well on 96-well plates and subjected to different treatment conditions. Following 24-hour incubation at 37 ℃ in a humidified incubator at 5% CO2/95% air, the cells were subsequently incubated for an additional hour with CCK8 reagent. Cell viability was determined by measuring the absorbance at 450 nm using the FL ×800 Fluorescence Microplate Reader (Biotek).
Apoptosis was measured using flow cytometric analysis of Annexin V and propidium iodide (PI) staining (BD Bioscience, San Jose, CA, USA) according to the manufacturer’s protocol. Cells were seeded into 6-well culture plates and incubated for 24 hours, then subjected to the indicated treatments. After treatment, cells were rinsed and resuspended in 100 µL binding buffer and incubated at room temperature for 15 min with 5 µL annexin V-FITC and 5 µL of PI. Cells were then analyzed using the flow cytometer FC500/FC500-MPL (Beckman Coulter).
Tumor cells were subjected to different treatments for the indicated times and then plated in 6-well culture plates at the density of 500 cells/well. Following incubation at 37 ℃ in a humidified incubator at 5% CO2/95% air for 8–10 days, the media was changed every 3 days. At the end of the culture period, cells were stained with 1% methylene blue in 50% methanol for 20 minutes, washed with water. Cell colonies were counted using the ImageJ software at the same settings for all treatment conditions.
Immunohistochemistry was performed to assess antitumor efficacy in vivo as described previously (18). Ki-67 (1:100, Abcam) and cleaved caspase-3 (1:100, CST) antibody was used to assess proliferation and apoptosis.
Synthesis of (D-Arg)9-p19ARF 26-44 peptide
Apeptide company (Shanghai, China) synthesized wild-type ARF26-44 peptide (rrrrrrrrKFVRSRRPRTASCALAFVN) and mutant ARF37-44 peptide (rrrrrrrrrSCALAFVN) as previously described (14). Both the peptides contained nine D-Arg (r) residues at the N terminus, which had been demonstrated to promote cellular uptake of polypeptides (19). The peptides were tagged with fluorescent Lissamine (TRITC) on the N terminus and acetylated at the C terminus.
Promoter reporter and luciferase assays
Mutant and wild-type pGL3-FHRE2 reporter constructs were generated as described previously (10). Luciferase activity was measured following the luciferase assay system protocol (Promega).
Murine xenograft model
Female BALB/c nude mice (6–8 weeks old; body weight 18–20 g) were purchased from Shanghai Laboratory Animal Co., (SLAC, Shanghai, China) and housed under specific pathogen-free conditions. Tumor xenografts were established by subcutaneous inoculation of a suspension of SKVO3 cells (2×106/100 µL). Animals were monitored until tumor volume reached approximately 100 mm3. The Animal Care and Use Committee of Renji Hospital, Shanghai Jiao Tong University, School of Medicine (No. XS2016-005) approved the experimental protocols. All animal experiments were carried out in accordance with the UK Animals (Scientific Procedures) Act of 1986 and associated guidelines. Animal studies adhered to the ARRIVE guidelines.
When the SKOV3 xenograft tumor volume reached 100 mm3, cancer-bearing mice were randomly divided into three groups. The three groups were then separately treated with intraperitoneal injection of cisplatin (5 mg/kg body weight every 3 days over a 21-day period) in combination with intra-tumoral injection with wild-type or mutant ARF peptide (5 mg/kg body weight, in 25 µL PBS, pH 7.4, every 3 days over a 21-day period), or with intraperitoneal injection with saline (non-treatment control). The therapeutic efficacy was determined by measuring tumor size of the xenografts. The size of the tumors were measured using calipers once every 3 days. The tumor volume was calculated according to the following formula: V = (largest diameter × small diameter2) × π/6. Systemic toxicity was evaluated by monitoring changes to body weight.
SPSS18.0 software was used for statistical analysis. Asterisks in each graph denotes statistically significant changes, with P values calculated using Student t-test*, P<0.05. P values of <0.05 were considered statistically significant.
FOXM1 is highly expressed in ovarian cancer tissue.

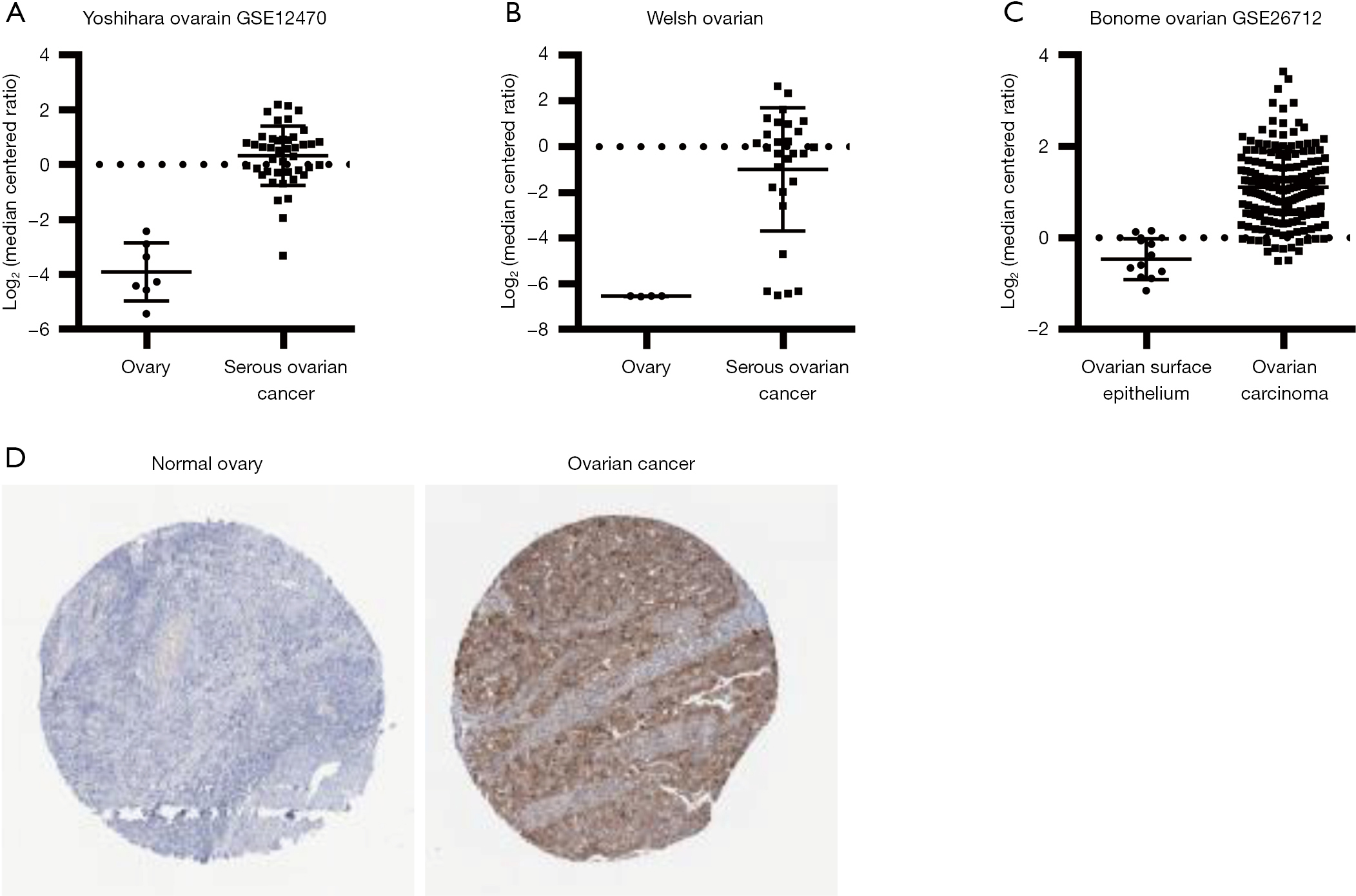

Using three independent ovarian cancer datasets: GSE12470 (Yoshihara Ovarian) (20), Welsh Ovarian (21), and GSE26712 (Bonome Ovarian) (22) in Oncomine (http://www.oncomine.org), the log2 expression levels of FOXM1 in normal ovary and ovarian cancer tissues were plotted based on the probe representing FOXM1 mRNA. As shown in Figure 1A,B,C, FOXM1 was consistently over-expressed in ovarian cancer tissue compared to normal ovary or normal ovary epithelium, with fold change of 18.939 in GSE12470, 46.736 in Welsh Ovarian and 3.1 in GSE26712. In addition, FOXM1 protein expression was analyzed in ovarian cancer and normal ovary tissue using The Human Protein Atlas Database (http://www.proteinatlas.org/). Immunohistochemistry staining using three primary antibodies showed that FOXM1 was expressed at medium to high levels in 10 of 12 samples, however, FOXM1 expression was not detected in 3 samples of normal ovary tissue (Figure 1D). These data suggest that FOXM1 was aberrantly expressed in ovarian cancer.
FOXM1 expression is associated with cisplatin response in ovarian cancer
Previous studies have shown that FOXM1 regulates chemo-sensitivity to DNA damaging reagents in several cancers (11). To determine the relationship between FOXM1 expression and cisplatin response in ovarian cancer, we evaluated FOXM1 expression in five serous ovarian cancer cell lines [A2780, SKOV3, ES2, HO8910 (16), 3AO (17)]. Modest to robust expression of FOXM1 protein was detected in all cancerous cell lines but not in primary ovarian epithelium cells (OSE) (Figure 2A). The IC50 of cisplatin arranged from 12.7 to 30.1 µg/mL with 12.7 in ES2 cells, 17.3 in A2780 cells, 19.8 in HO8910 cells, 23.5 in 3AO cells and 30.1 in SKOV3 cell (Figure 2B). More importantly, FOXM1 expression in the cell lines was positively correlated with the IC50 of cisplatin. The correlation index (Pearson correlation) was 0.857 (P<0.05) (Figure 2C). Together, these results indicated that FOXM1 expression was associated with cisplatin response in ovarian cancer cell lines.
ARF peptide inhibits expression of FOXM1 downstream target genes in SKOV3 cell line
Previous studies have demonstrated that membrane-transducing (D-Arg)9-p19ARF peptide inhibited FOXM1 transcriptional activity in human osteosarcoma U2OS cells (14), and induced apoptosis in human hepatoma HepG2 cells (15). We investigated whether ARF peptide had similar effect in ovarian cancer cells. First, ARF peptide with TRITC tag was synthesized and cell permeability of the peptides was evaluated in SKOV3 cells with high IC50 of cisplatin and high expression of FOXM1 (Figure 3A). As expected, the ARF peptide penetrated the cell membrane and translocated into the nucleus of SKOV3 cells after incubation for 12 hours (Figure 3B). When cell viability was measured in SKOV3 cells treated with wild-typed or mutant peptides, the wild-type peptide was found to inhibit SKOV3 cell growth with an IC50 of 25 µM, while the mutant peptide only showed minor inhibition for cell proliferation (Figure 3C). To confirm previous reports that FOXM1 could regulate the transcription of PLK1 (3), EXO1 (9) and whether the ARF-derived peptide could inhibit FOXM1 transcriptional activity (15), we measured PLK1 and EXO1 gene expression in SKOV3 cells. QPCR and Western blot analysis demonstrated that PLK1 and EXO1 expression was downregulated at both the mRNA and protein level after treatment with 5 µM wild-type ARF peptide but had a minimum effect on cell viability (Figure 3D,E). This result suggested that ARF peptide could directly target the transcription of PLK1 and EXO1 and that downregulation of gene expression was not due to fewer viable cells. In addition, reporter assays demonstrated that the ARF peptide affected luciferase activity in wild-type pGL3-FHRE2 constructs having the EXO1 promoter, but not in the mutant FHRE2 construct (Figure 3F). The results demonstrate that the ARF peptide could suppress FOXM1 transcriptional activity in SKOV3 cells.
ARF peptide sensitizes ovarian cancer to cisplatin in vitro
Since FOXM1 expression levels are associated with cisplatin response in ovarian cancer, and ARF peptide could inhibit FOXM1 transcriptional activity in SKOV3 cells, we hypothesized that the ARF peptide could sensitize ovarian cancer cells to cisplatin in vitro. To test this, SKOV3 cells were incubated with 5 µM ARF peptide for 24 hours, then treated with cisplatin for an additional 24 hours. Then cell viability was normalized to the OD450 value of cells treated with peptide alone to eliminate any growth inhibitory effect of the peptide. The results showed that cells pretreated with wild-type peptide were more sensitive to cisplatin compared to cells pretreated with mutant peptide (~22.4 vs. ~31.7 µg/mL) (Figure 4A). In addition, colony formation was evaluated in SKOV3 cells treated with peptides in the presence or absence of cisplatin. Wild-type peptide pretreated cells exhibited attenuated colony formation ability after cisplatin treatment (19.6%±6.40% vs. 40.4%±9.1%), with peptide treatment alone showing minimal effects on colony formation (Figure 4B,C). Apoptosis analysis by flow cytometry also showed that apoptosis was significantly higher in cells pretreated with wild-type peptide compared to mutant peptide (36.5%±3.0% vs. 20.7%±3.5%), however peptide treatment alone did not induced notable apoptosis (Figure 4D,E). Consistent with this, western blot analysis showed significant enhanced expression of cleaved caspase-3 in wild-type ARF pretreated cells (Figure 4F). These results indicate that ARF peptide could sensitize SKOV3 cells to cisplatin treatment, and increased cell apoptosis induced by cisplatin contributed, at least partially, to enhancing cytotoxicity in cells pretreated with ARF peptide.
ARF peptide sensitizes ovarian cancer to cisplatin in vivo
In order to determine the effect of ARF peptide on tumor xenograft growth, mice bearing tumors were treated with saline, or with the combination of cisplatin and wide-type or mutant ARF peptide, and observed for 7 consecutive treatments (flow diagram shown in Figure 5A). As shown in Figure 5B, SKOV3 tumor growth was significantly inhibited in mice treated with cisplatin and mutant peptide, but, the combination of cisplatin with wild-type peptide produced significantly greater inhibition of tumor growth. There was no significant differences in body weight between mice treated with wild-type or mutant peptide (data not shown). To investigate the mechanism underlying the sensitization effect of ARF peptide observed in vitro and in vivo, we analyzed cancer proliferation and apoptosis in the tumors of treated mice (Figure 5C). Immunohistochemistry analysis demonstrated that the combination of cisplatin and wild-type ARF peptide produced a significant increase in cleaved caspase-3 (P<0.05) and significant decrease in Ki-67 (P<0.05) (Figure 5D), compared to the combination of cisplatin and mutant peptide.
Patients with ovarian cancer have a poor prognosis because of late diagnosis and unfavorable response to chemotherapy. Targeted therapies are currently being investigated to find novel strategies to overcome chemoresistance. The most intensively studied molecular targets include VEGF, EGFR, HER2, and PARP (23). Recent studies have shown that FOXM1, a key regulator of cell cycle progression, is aberrantly expressed in ovarian cancer and confers resistance to DNA damaging reagents including cisplatin (11). The p19ARF residues 26-44 were sufficient to inhibit FOXM1 transcriptional activity and sensitize breast cancer cells to Herceptin and Taxol treatment (7,15). We investigated whether cell-penetrating ARF peptide sensitizes ovarian cancer to cisplatin treatment. We showed that FOXM1 mRNA and protein were both highly expressed in ovarian cancer, and that FOXM1 expression levels inversely correlated with cisplatin response in ovarian cancer cell lines. SKOV3 cells treated with ARF peptide exhibited attenuated expression of FOXM1 downstream target genes, which may be due to the inhibition of FOXM1 transcriptional activity. FOXM1 sensitized ovarian cancer to cisplatin in vitro and in vivo.
DNA-damaging drugs including platinum compounds are frequently used to treat solid tumors in the clinic. For ovarian cancer, cisplatin is the key constituent of postoperative primary chemotherapy as well as a neoadjuvant (24). The formation of cisplatin-DNA adducts leads to blockage of DNA, RNA, and protein synthesis resulting in apoptosis if the extent of damage is beyond repair. However, adverse effects such as, nephrotoxicity, neurotoxicity and ototoxicity limit the dosing of cisplatin (25). Multiple pathways and molecules contribute to cisplatin resistance (26). FOXM1, which is overexpressed in cancer, confers resistance to DNA damaging drugs and genotoxic agents by enhancing DNA repair gene networks (11). In addition, FOXM1 protects cancer cells from cisplatin-induced apoptosis (27). Small molecular inhibitors targeting FOXM1, such as Thiostrepton and siomycin A, have been proven as a potential strategy to overcome cisplatin resistance in cancer (28).
Peptide-based therapies have been developed for years with different anticancer mechanisms including tumor angiogenesis inhibition, tumor apoptosis or tumor necrosis induction, kinase activity inhibition. Several of these peptides have shown great promise in preclinical and clinical studies (29,30). In our study, ARF-derived peptide significantly inhibited the expression of FOXM1 downstream target genes, and sensitized ovarian cancer cells to cisplatin. These results suggest that FOXM1-targeting peptide is a novel therapeutic strategy to improve response to platinum-based chemotherapy in ovarian cancer patients.
Our study demonstrated that FOXM1 was aberrantly expressed and associated with cisplatin response in ovarian cancer. Cell-penetrating ARF-derived peptide inhibited expression of FOXM1 downstream target genes PLK1 and EXO1 and sensitized cancer cells to cisplatin in cultured SKOV3 cells and xenograft models. Our findings provide a new treatment strategy to improve cisplatin chemo-sensitivity in ovarian cancer.
We would like to thank all the lab members of Shanghai Key Laboratory of Gynecologic Oncology for supporting this study.
Funding: This study was supported by grants from the National Natural Science Foundation of China (No. 81272882, 81772773, 81302275, and 81672560), Jiangsu Provincial Medical Youth Talent Program (QNRC2016753), The Applied Basic Research Program of Science and Technology Commission Foundation of Suzhou (SYS201463), and The Project of Jiangsu Provincial Maternal and Child Health Association (No. FYX201709).
Conflicts of Interest: The authors have no conflicts of interest to declare.
Ethical Statement: The Animal Care and Use Committee of Renji Hospital, Shanghai Jiao Tong University, School of Medicine approved the animal experimental protocols (No. XS2016-005).
