The incidence and mortality of bladder cancer is high, with an estimated 429,800 new cases of bladder cancer and 165,100 deaths occurring in 2012 worldwide (1). Surgery is the first choice for the treatment of bladder cancer, but relapse and metastasis after the operation are common (2). The prognosis of patients with bladder cancer is poor due to its strong resistance to chemotherapeutic drugs (3), which is due to the heterogeneity inside the tumor tissues (4).
Evidence shows that bladder tumor cells are heterogeneous and are assumed to include cancer stem cells (CSCs), which possess a special stem-like phenotype and strong abilities for self-renewal, tumorigenicity, invasion, and migration (5). Bladder CSC markers have been reported, including CD133 and CD44 (6,7). Furthermore, spheres have been referred to as tumor cell aggregations possessing CSC properties (8,9). Consistent with this assignment, sphere-forming bladder cancer cell lines are suitable models for bladder CSCs, a result that has been demonstrated by previous studies underlying bladder CSCs (10,11). Though many signaling networks, including the Wnt/β-catenin, Hedgehog, and PI3K/AKT pathways have been reported to be crucial in regulating bladder CSCs (12-14), the molecular mechanisms underlying CSCs in the relapse and metastasis of bladder cancer are unknown.
Interleukin 6 (IL6) signaling has been reported to mediate the proliferation, invasion, and metastasis of various types of cancers (15-17). In addition, the IL6-related pathway regulates the stemness properties of CSCs (18). Many reports have demonstrated that IL6 exerts its biological effects by binding to the IL6 receptor (IL6R), which triggers the downstream activation including STAT3 (19,20). However, it is still unknown whether IL6/IL6R maintains the stem-like characteristics of bladder CSCs and if the blockade of the IL6R suppresses the expansion of CSCs.
In this study, we demonstrated that IL6 and its receptor IL6R were up-regulated in bladder CSCs. In addition, IL6 promoted the stem-like characteristics of bladder cancer by binding to the IL6R and enhancing the phosphorylation of STAT3. Furthermore, the administration of tocilizumab (anti-IL6 receptor drug) inhibited the IL6 promotion of bladder CSCs.
The bladder cancer cell lines RT4 and J82 cells were obtained from the Cell Bank of Type Culture Collection of the Chinese Academy of Sciences. The RT4 and J82 cells were respectively maintained in McCoy’s 5A medium (Invitrogen, Carlsbad, CA, USA) and MEM medium (Invitrogen, Carlsbad, CA, USA) supplemented with 10% fetal bovine serum (Gibco, Carlsbad, CA, USA). The spheres were cultured in DMEM/F-12 (Gibco, Carlsbad, CA, USA) without FBS and supplemented with EGF recombinant human protein solution (Gibco, Carlsbad, CA, USA), FGF-Basic (AA 1–156) recombinant human protein (Gibco, Carlsbad, CA, USA) and ITS liquid media (Sigma-Aldrich, St Louis, MO, USA). Human recombinant IL-6 (50 ng/mL, R&D Systems, Minneapolis, MN, USA), an IL6 neutralizing antibody (20 µg/mL, Abcam, Cambridge, MA, USA) and a humanized anti-IL6 receptor inhibitor (5 µg/mL, tocilizumab, Genentech) were added in the indicated experiments to selected wells.
Sphere formation assay
Single-cell suspensions of 5,000 cells were incubated in 6-well ultra-low-attachment culture plates (Corning, NY, USA) for 4 days. The number of spheres was counted under a microscope.
Real-time quantitative reverse transcription polymerase chain reaction (qRT-PCR)
Total RNA was prepared from the cultured RT4 or J82 cells by using Trizol (Invitrogen, Grand Island, NY, USA) according to the manufacturer’s protocol. Reverse transcriptase PCR was performed using Superscript III RT (Invitrogen, Grand Island, NY, USA) in the presence of random primers. The amplification of the generated cDNA was carried out in SYBR Green PCR Master Mix (Takara, Otsu, Shiga, Japan) with the ABI PRISM 7300HT Sequence Detection System. The primer sequences are listed as follows:
CD133, 5'-GCCACCGCTCTAGATACTGC-3', 5'-TGTTGTGATGGGCTTGTCAT-3'; CD44, 5'-GAGCATCGGATTTGAGA-3', 5'-CATACTGGGAGGTGTTGG-3'; ABCG2, 5'-CAGGTTACGTGGTACAAGATGA-3', 5'-GATCAGTGATAAGCTCCATTCC-3'; Oct-4, 5'-AGTGAGAGGCAACCTGGAGA-3', 5'-ACACTCGGACCACATCCTTC-3'; Nanog, 5'-CTGCTGGACTGAGCTGGTTGCC-3', 5'-GCTGAGGCCTTCTGCGTCACA-3'; IL6, 5'-CTCAATATTAGAGTCTCAACCCCCA-3', 5'-GAGAAGGCAACTGGACCGAA-3'; IL6R, 5'-TCACTGTGTCATCCACGACG-3', 5'-CTGGATTCTGTCCAAGGCGT-3'; and β-actin, 5'-CCCTGGCACCCAGCAC-3', 5'-GCCGATCCACACGGAG-3'. Each measurement was performed in triplicate, and the results were normalized to the expression of the β-actin gene. The fold change relative to the mean value was determined by 2−ΔΔCt.
Enzyme-linked immunosorbent assay (ELISA)
Conditioned media of the adherent cells and spheres from RT4 and J82 cell lines were collected after 4 days of culturing, and then tested for the IL6 ELISA kit (R&D system, Minneapolis, MN, USA) according to the manufacturer’s instructions.
The protein extracts were subjected to SDS-PAGE and were analyzed using the following primary antibodies: IL-6R; p-STAT3; STAT3 and β-actin (Abcam, Cambridge, MA, USA). The secondary antibodies were labeled with IRDye 700 (Rockland Immunochemicals, USA). The protein levels were detected by the Odyssey system (Li-Cor, Lincoln, NE, USA).
Flow cytometry assay
The flow cytometry assay was performed with a Cyan ADP Sorter (Beckman, CA, USA). Bladder cancer cell lines were magnetically labeled with a PE-conjugated-CD133 antibody (Miltenyi Biotec, Bergisch Gladbach, Germany). All the procedures were carried out according to manufacturer’s instructions.
Invasion and migration assay
The invasion and migration assays were carried out in a transwell chamber (Millipore, USA) with or without Matrigel (BD Biosciences, Bedford, MA, USA) according to manufacturer's instructions. Briefly, 500 µL conditioned medium from one of the different groups was added to the bottom chamber as a chemoattractant. A total of 2×104 cells suspended in 200 µL of serum-free culture medium were placed into the chamber with or without Matrigel, and the chambers were placed in 24-well microplates which contained 500 µL conditioned medium to allow the bottom of the chamber to touch the conditioned medium. Therefore, the upper chamber level contained bladder cancer cells suspended in serum-free culture medium, and the lower chamber level contained conditioned medium. Bladder cancer cells in upper chamber would invade through the Matrigel or the membrane of the chamber to the bottom level of the chamber. After 48 hours, the cells that invaded through the Matrigel or membrane to the bottom of the chamber were fixed with 1% paraformaldehyde, then photographed and counted after staining with 0.1% crystal violet. The experiments were independently performed for 3 times.
Tumor formation assay
The RT4 cells were transfected with the luciferase reporter gene. For each treatment, a total of 1×104 RT4-Luc-spheres in 50 µL of PBS were injected subcutaneously into 6-week-old NOD/SCID male mice (Chinese Science Academy, Shanghai, China). Tumor growth was monitored weekly by live-animal bioluminescence optical imaging with the IVIS Lumina II imaging system (PerkinElmer, Hopkinton, MA, USA) after an intraperitoneal injection of D-luciferin (150 mg/kg) (Gold Biotech, USA) in 100 µL of DPBS. The mice were sacrificed at the six weeks post-injection time point, and the tumors were harvested for further examination. Tumor volume was calculated based on three perpendicular measurements by using the formula: volume =1/2 × length × width × height. All experimental procedures were performed according to the guidelines of the Institutional Animal Care and Use Committee of the First Affiliated Hospital of Chongqing Medical University.
The differences between the variables were assessed by a two-tailed Student’s t-test or an ANOVA. All the values were expressed as the means ± SD, and statistical significance was defined as P<0.05. The data analysis was performed with SPSS 16.0 (SPSS Inc., Chicago, Illinois, USA).
Expression of IL6 and its receptor is up-regulated in bladder cancer spheres with CSC properties

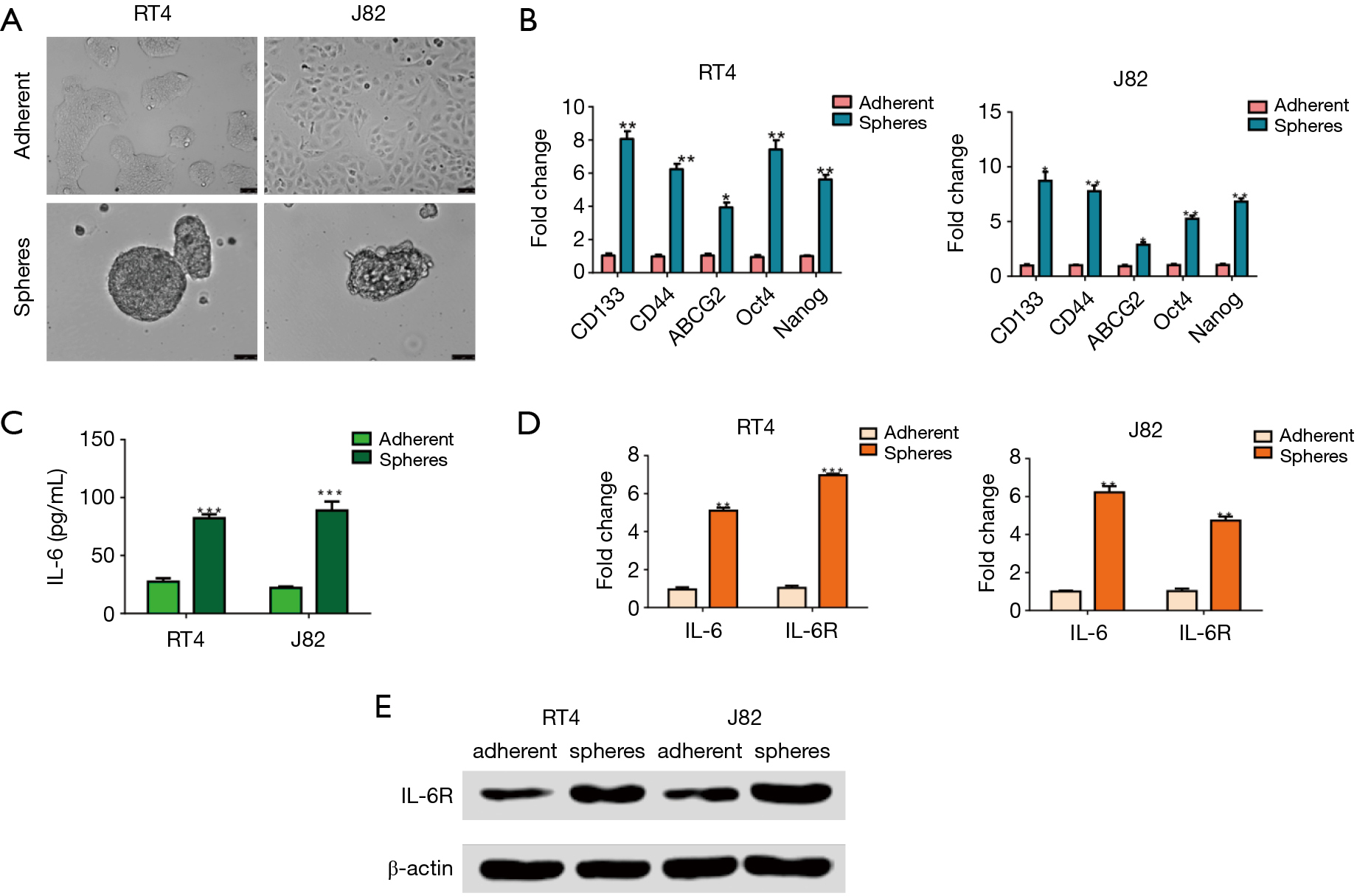

It has been reported that CSCs can be enriched in spheres (21,22), which are cultured in serum-free medium. In our study, single-cell suspensions of bladder cancer cells from the RT4 and J82 cells were incubated in 6-well ultra-low-attachment culture plates for 4 days to achieve the spheres. As expected, a higher expression of stem-associated genes was observed in the spheres from the RT4 and J82 cells via qRT-PCR, which has been reported to examine the stem-like associated genes (23,24) (Figure 1A,B), suggesting that CSCs are enriched in spheres.
Cancer cells or CSCs are believed to evoke high IL6 secretion in an autocrine fashion, contributing to the malignant features of drug-resistance and metastasis. Therefore, to examine whether IL6 was secreted from bladder CSCs, an ELISA was performed to assess the IL6 expression in the supernatants of the adherent and sphere RT4 or J82 cells after 4 days of culturing. As expected, the expression of IL6 was robustly elevated in the supernatants of the spheres, in contrast to that of the adherent cells (Figure 1C). In addition, the expressions of IL6 and IL6R mRNA were both up-regulated in the spheres from the RT4 and J82 cells (Figure 1D). Consistently, the same results were confirmed by Western blot (Figure 1E). These results suggest that IL6 signaling may be crucial in regulating bladder CSCs.
IL6 sustains the stem-like characteristics of bladder cancer
Given that the expressions of IL6 and IL6R are elevated in bladder CSCs, we next investigated whether IL6 promoted the self-renewal, stem-associated genes, invasion, migration, and tumorigenicity of the spheres from bladder cancer. First, single-cell suspensions of 5,000 bladder cancer cells were incubated in 6-well ultra-low-attachment culture plates for 4 days. As shown in Figure 2A, more spheres from the RT4 or J82 cells were observed in the group with human recombinant IL6 (50 ng/mL) than in the control group without the IL6 treatment. The same results were also found in the second generation of spheres. Additionally, the self-renewal of the spheres was alleviated by the administration of the IL6 neutralizing antibody (Figure 2A). Second, a higher expression of stem-associated genes was found in the IL6-treated bladder cancer cells than in the control cells, while the IL6 neutralizing antibody decreased the expression of the stem-associated genes (Figure 2B). Third, based on flow cytometry, a higher percentage of CD133 was observed in the IL6-treated bladder cancer cells than in the control cells, while the IL6 neutralizing antibody decreased the percentage of CD133 induced by IL6 (Figure 2C).
To further survey the role of IL6 in the stem-like properties of the bladder cancer cells, spheres without or with recombinant IL6 (50 ng/mL) or the IL6 neutralizing antibody (20 µg/mL) from the RT4 cells transfected with luciferase were injected subcutaneously into NOD/SCID male mice. Tumor growth was monitored weekly by live-animal bioluminescence optical imaging with the IVIS Lumina II imaging system. As expected, the subcutaneous injection of the IL6-treated spheres resulted in an increased incidence and tumor volume compared with that of the counterparts (Figure 2D,E), even when only 10,000 cells were implanted into the NOD/SCID mice. However, the IL6 neutralizing antibody decreased the tumorigenicity of the spheres and the tumor volume. (Figure 2D,E). These findings demonstrate that IL6 maintains the stem-like characteristics of bladder CSCs.
The IL6 signaling pathway is activated in bladder CSCs
IL6 is reported to regulate CSCs in various types of tumors, including liver cancer and breast cancer. By binding to its receptor IL6R, IL6 leads to the recruitment and activation of cytosolic STAT3, which then translocates into the nucleus and triggers the associated genes (25). To examine the molecular mechanism of IL6 promoting the stem-like properties of bladder CSCs, we detected whether IL6/STAT3 was activated in the IL6 treated-spheres from bladder cancer.
First, we assessed the protein expression of IL6R and the phosphorylation STAT3 in the IL6-treated bladder cancer cell lines and their spheres. As expected, the phosphorylated STAT3 was elevated in the IL6-treated bladder cancer cell lines and spheres compared with that of the control naïve cells (Figure 3A,B), suggesting that IL6/STAT3 activation was associated with the stem-like properties of bladder spheres. Then, to confirm the necessary role of IL6R in the IL6-promoted activation of STAT3, the FDA-approved drug tocilizumab (IL6R inhibitor) was applied. When tocilizumab (5 µg/mL) was added in the IL6-treated bladder cancer cell lines and spheres, the phosphorylation of STAT3 was decreased (Figure 3A,B).
Second, the effects of tocilizumab in the self-renewal and stem-associated gene expression of the bladder cancer cells were examined. According to the spheres-forming assay, when IL6R was inhibited by tocilizumab, the number of spheres was decreased (Figure 3C). As shown in Figure 3D, the elevated expression of the stem-associated genes was abated when tocilizumab was administered in the IL6-treated bladder cancer cells. In addition, based on flow cytometry, tocilizumab alleviated the increased CD44 or CD133 percentage in the IL6-treated bladder cancer cells (Figure 3E,F). These results indicate that IL6R is necessary for the IL6/STAT3 to promote the stem-like properties of bladder CSCs.
Blockade of IL6R signaling inhibits the invasion, migration and tumorigenicity of bladder CSCs
Based on the results above, we examined whether the blockade of the IL6R by tocilizumab inhibited the invasion, migration, and tumorigenicity of the bladder CSCs. First, invasion and migration assays were carried out in transwell chambers with or without Matrigel. A total of 2×104 bladder cancer cells were placed into the upper chamber, and the conditioned medium from one of the different groups was added to the bottom chamber as a chemoattractant. After 48 hours, the number of cells that invaded through the membrane or Matrigel was counted after staining with 0.1% crystal violet. As expected, the Matrigel invasion and transwell assays showed that the IL6-treated spheres exhibited a higher rate of cell invasion and migration than that of the control cells, whereas tocilizumab eliminated the effect of IL6 (Figure 4A). Finally, we determined whether tocilizumab inhibited the tumorigenicity of the IL6-treated spheres in vivo. A subcutaneous injection of the IL6-treated spheres resulted in an increased tumor incidence and tumor volume compared with the counterparts without the IL6 administration, while tocilizumab abrogated the enhanced tumorigenicity of the IL6-treated spheres and the tumor volume (Figure 4B,C). These findings demonstrate that tocilizumab inhibits the stem-like characteristics of bladder CSCs promoted by IL6.
Despite advances in surgery and chemotherapy for bladder cancer treatment, the 5-year overall survival rate for bladder cancer patients remains poor (26). Invasion and metastasis are frequent in bladder cancer even after radical operation. However, the molecular mechanism of bladder cancer progression remains unknown. Recently, CSCs have been reported to be related to cancer progression, including chemoresistance, due to their expansion, self-renewal, and drug-resistant capacities. However, the mechanisms underlying CSCs in the progression of bladder cancer remain unclear and need to be elucidated.
In this study, we demonstrated that the IL6/IL6R/STAT3 axis was required for maintaining the stem-like properties of bladder CSCs. Furthermore, we found that tocilizumab, an FDA-approved drug targeting the IL6R, inhibited the effects of IL6/IL6R/STAT3 signaling on the expansion and progression of bladder CSCs. IL6 is a cytokine that provokes a broad range of cellular and physiological responses. In patient’s sera of different types of cancers, including bladder cancer, the IL6 level is elevated and is suggested to be associated with poor clinical outcome. However, whether IL6 plays a vital role in the expansion and self-renewal of bladder CSCs is unknown.
Our results showed that IL6 was up-regulated in the supernatants and CSCs, suggesting that the CSCs were the secreting origin of IL6 and that IL6 might regulate the stem-like characteristics of CSCs. Then, we demonstrated that recombinant IL6 promoted self-renewal, the expression of stem-associated genes, invasion, migration, and tumorigenicity. Consistently, we presented that IL6R was elevated in bladder CSCs. Although IL6R is reported to be required in the stem-like properties of CSCs, there are no studies about its role and related mechanisms in bladder CSCs. Therefore, we examined whether IL6/IL6R and the downstream STAT3 regulated bladder CSCs.
Our findings showed that either eliminating exogenous IL6 by a neutralizing antibody or targeting IL6R led to the reduced activity of self-renewal, invasion, migration, and tumorigenicity of bladder CSCs. IL6 is the most well-known traditional activator of STAT3, and IL6 exerts its biological effects by binding to the IL6 receptor on the cell surface, which leads to the phosphorylation and activation of cytosolic STAT3. This effect promotes the stem-like properties of bladder CSCs. In our model, the phosphorylation of STAT3 was up-regulated in the stem-like properties of bladder CSCs. However, when tocilizumab was added in the supernatant of the IL6-treated spheres, the phosphorylated STAT3 was decreased, which resulted in stem-like characteristics and even the tumorigenicity of bladder CSCs. Collectively, our findings demonstrate that IL6/IL6R/STAT3 promotes the stem-like characteristics of bladder CSCs. Furthermore, our study provides a novel target for bladder CSCs, IL6R. Future studies should make great efforts to explore the role of tocilizumab in clinical studies and examine the specific molecular mechanisms.
Conflicts of Interest: The author has no conflicts of interest to declare.
Ethical Statement: The study was approved by the Institutional Animal Care and Use Committee of the First Affiliated Hospital of Chongqing Medical University (No. 2019016).
