The importance of galectin-3 as a novel target for lung cancer patients harboring KRAS mutation

The importance of galectin-3 as a novel target for lung cancer patients harboring KRAS mutation

Kang-Seo Park, Dae Ho Lee

Department of Oncology, Asan Medical Center, University of Ulsan College of Medicine, Seoul, Republic of Korea

Correspondence to: Professor Dae Ho Lee, MD, PhD. Department of Oncology, Asan Medical Center, University of Ulsan College of Medicine, 88 Olympic-ro, 43-gil, Songpa-gu, Seoul 05505, Republic of Korea. Email:

Provenance: This is an invited Editorial commissioned by Section Editor Dr. Yan Li (Experimental Therapeutics Centre, Agency for Science, Technology and Research, Singapore).

Comment on: Seguin L, Camargo MF, Wettersten HI, et al. Galectin-3, a Druggable Vulnerability for KRAS-Addicted Cancers. Cancer Discov 2017;7:1464-79.

Submitted Dec 20, 2017. Accepted for publication Jan 03, 2018.

doi: 10.21037/tcr.2018.01.10

Precision cancer medicine using molecular targeted therapies is a cornerstone for cancer therapy during the last two decades. However, the drug resistance regardless of primary or acquired one is still a big hurdle which should be overcome to improve cancer therapy and its outcomes. In this regard, lung cancer is a prototype. Although it is the leading cause of cancer death worldwide, fortunately, treatment for lung cancer has improved dramatically owing to advance of molecular targeted therapies and immunotherapeutic agents (1). Notwithstanding the advances, KRAS mutations are still troublesome. Actually, they have been known well for a long time as a common known oncogenic driver in lung cancer, accounting for approximately 30% of cases. But, unlike EGFR and ALK inhibitors, known as of their great successes. attempts to targeting KRAS mutations have failed due to issues related to structural characteristics and downstream signal pathway diversity, leading that KRAS mutation is yet known “undruggable” target (2). KRAS mutations leads to ongoing provocation of the two downstream pathways, RAF/MEK/ERK/RSK and PI3K/AKT/mTOR pathways and induces tumorigenesis via continuous oncogenic activation (3). Indeed, the two pathways have already been known to have profound effects on the regulation of apoptosis by the post-translational phosphorylation of apoptotic regulatory molecules including forkhead box transcription factor class O (FOXO), glycogen synthase kinase 3 (GSK3), Bcl-2-associated death promoter (BAD) and caspase-9, associated with tumorigenesis and drug resistance (4).

The simultaneous activation of PI3K/AKT/mTOR and RAF/MEK/ERK/RSK signaling explains why single-pathway inhibition among the two pathways is not efficient, suggesting the rationale for the need of inhibition of both pathways. Although a number of research teams still remain focusing on developing inhibitors directly targeting KRAS (5,6), more widely accepted strategy, however, is dual-targeting the two downstream components of RAS signaling, RAF/MEK/ERK/RSK and PI3K/AKT/mTOR pathways. In addition, tumors harboring a different KRAS mutation show diverse or different responses to inhibitors targeting major downstream molecules, MEK, PI3K, RAF, ERK, AKT, etc. For example, although in preclinical studies various tumor types harboring a KRAS mutation including non-small cell lung cancer (NSCLC) respond well to PI3K inhibitors (7), blocking PI3K/AKT/mTOR pathway is not sufficient or even intrinsically resistant in cancer patients. A number of researches have proved that PI3K inhibitor resistance begins via beta-catenin (8) and RSK activation, and induces bypass activation of downstream components of the RAF/MEK/ERK/RSK pathway (9). MEK inhibition also showed good effects in KRAS-mutant NSCLC (10) and BRAF-mutant melanoma (11), but a part of patients did not benefit from MEK inhibition because of intrinsic resistance as well. The representative mechanism of intrinsic MEK inhibitor resistance was EGFR and PI3K/AKT bypass activations (12).

Many efforts have been tried to overcome intrinsic resistance to either PI3K or MEK inhibitors using combination strategies in KRAS-mutant tumors. Dual targeting both MEK and PI3K to simultaneously inhibit the both RAF/MEK/ERK/RSK and PI3K/AKT/mTOR pathways showed a potent anticancer effect in vitro and in vivo in NSCLC harboring KRAS mutations (13). However, unfortunately, in recent clinical phase I/II studies, the combination blocking both PI3K/AKT/mTOR and RAF/MEK/ERK/RSK pathways was not or poorly tolerated in patients with multiple myeloma and solid tumors due to its toxicities such as diarrhea, rash, fatigue, vomiting, and so on (14). In addition, in another recent phase I/Ib and II studies of combination of trametinib, MEK inhibitor and either omipalisib, PI3K inhibitor or afuresertib, AKT inhibitor was also poorly tolerated as well (15). In addition to the toxicities, combinations do not seem to translate into better clinical outcomes with low disease control rates of about 20% (14). Due to limitation of combination treatments using already exiting agents, a novel combination treatment using HSP90 inhibitors was interestingly suggested instead of combinations directly targeting both PI3K and MEK (16,17). Combinations of HSP90 inhibitor showed good anti-cancer effect in NSCLC harboring diverse KRAS mutations, which seemed to effectively overcome intrinsic PI3K inhibitor (17) or MEK inhibitor (16) resistance with less toxicity compare with previous combination treatment. However, these approaches should be evaluated and proved in clinical trials.

Galectin-3 is an endogenous lectin and ubiquitously expressed in various mammalian tissues and associated with the following cell biological progresses: cell adhesion, cell activation, cell growth, differentiation, cell cycle, and apoptosis (18). In addition, a number of past researches showed that galectin-3 has been proved to be involved in inflammation, fibrosis and heart disease as well as cancer (18). It has an affinity for beta-galactosides and it cause antimicrobial activity against bacteria and fungi. This affinity regulates the binding between Gal-3 and many glycoproteins or glycolipids in the cell membrane components, such as integrins, including integrin αvβ3 (19), epidermal growth factor receptor and transforming growth factor beta receptor. This well-known ligand of Gal-3 present that Gal-3 has a crucial role in tumor progression. Therefore, since 2005, Gal-3 has been identified as a novel therapeutic target in various cancers due to the unique structure and various interaction properties of the molecule (20). Actually, the diverse changes in cellular localization of galectin-3 have been reported in various tumors and variable galectin-3 expression can affect cancer cell growth and differentiation, chemo-attraction, apoptosis, immunosuppression, angiogenesis, adhesion, invasion and metastasis (21). In particular, this protein encourages tumor transformation and enhances the tumor adhesion and metastatic spreading of tumor. It can also regulate immune activities and supports evasion of tumor from the immune system as well as promote angiogenesis. In 2017, it is coming into spotlight as potent novel target for treatment KRAS-mutant tumor with integrin αvβ3 (22). Integrin αvβ3 is a type of integrin that is a receptor for vitronectin, consisting of two components, integrin alpha V and integrin beta 3 (CD61). Furthermore, it is a receptor for phagocytosis on macrophages or dendritic cells (23). According to this research group, the binding between galectin-3 and integrin αvβ3 drives KRAS addiction via micropinocytosis for nutrient uptake in lung cancer harboring KRAS mutations (Figure 1). In addition, they found that this KRAS addiction counteracts the effects of oxidative stress and make this tumor maintain low mitochondrial reactive oxygen levels. Indeed, it has been spotlighted as potent target for intractable cancer in earnest from 2014 to overcome EGFR-TKI resistance, in which galectin-3 bound to integrin αvβ3, induced acquired EGFR-TKI resistance via NF-kB activation and so it was suggested as the combination treatment strategy of NF-kB inhibitor with EGFR-TKI (24). Recently, Gal-3 inhibitor, RN1, showed good effect in pancreatic cancer cells (25) and they also showed that another Gal-3 inhibitor, GCS-100, has dramatic ant-cancer effect in KRAS-mutant tumor cells and patient-derived xenograft (PDX) tumor model expressing integrin αvβ3. This inhibitor not only prevents the tumor cells from engulfing nutrients via micropinocytosis but also increases reactive oxygen species (ROS) levels in 3D culture, xenograft model and PDX tumor model (22).

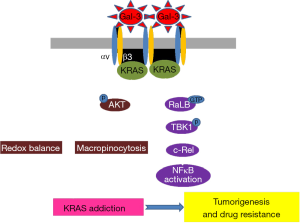

Figure 1 Schematic summarize the molecular basis for integrin αvβ3 mediated KRAS addiction in KRAS mutant tumor.

In conclusion, KRAS mutant is known as undruggable and one of the overcoming strategies is combination treatment using blocking molecules in both downstream pathways of KRAS. However, there are still many hurdles targeting KRAS mutations. In this respect, inhibition of interaction between Gal-3 and integrin αvβ3, upstream molecules, is a simple but novel and can be a promising therapeutic strategy for KRAS mutant cancers patients.




Conflicts of Interest: DH Lee declared that he received honoraria from AstraZeneca, Boehringer-Ingelheim, Bristol-Myers Squibb, CJ Healthcare, Eli Lilly, Janssen, Merck, MSD, Mundipharma, Novartis, Ono, Pfizer, Roche, Samyang Biopharm and ST Cube and has a consulting role in Ministry of Food and Drug Safety, Korea, Health Insurance Review and Assessment Service, Korea, National Evidence-based Collaborating Agency, Korea, and National Cancer Control Planning Board, Korea. KS Park has no conflicts of interest to declare.


  1. Pylayeva-Gupta Y, Grabocka E, Bar-Sagi D. RAS oncogenes: weaving a tumorigenic web. Nat Rev Cancer 2011;11:761-74. [Crossref] [PubMed]
  2. Young A, Lyons J, Miller AL, et al. Ras signaling and therapies. Adv Cancer Res 2009;102:1-17. [Crossref] [PubMed]
  3. Repasky GA, Chenette EJ, Der CJ. Renewing the conspiracy theory debate: does Raf function alone to mediate Ras oncogenesis? Trends Cell Biol 2004;14:639-47. [Crossref] [PubMed]
  4. Garnett MJ, Marais R. Guilty as charged: B-RAF is a human oncogene. Cancer Cell 2004;6:313-9. [Crossref] [PubMed]
  5. Zimmermann G, Papke B, Ismail S, et al. Small molecule inhibition of the KRAS-PDEdelta interaction impairs oncogenic KRAS signalling. Nature 2013;497:638-42. [Crossref] [PubMed]
  6. Burns MC, Sun Q, Daniels RN, et al. Approach for targeting Ras with small molecules that activate SOS-mediated nucleotide exchange. Proc Natl Acad Sci U S A 2014;111:3401-6. [Crossref] [PubMed]
  7. Engelman JA, Chen L, Tan X, et al. Effective use of PI3K and MEK inhibitors to treat mutant Kras G12D and PIK3CA H1047R murine lung cancers. Nat Med 2008;14:1351-6. [Crossref] [PubMed]
  8. Tenbaum SP, Ordonez-Moran P, Puig I, et al. beta-catenin confers resistance to PI3K and AKT inhibitors and subverts FOXO3a to promote metastasis in colon cancer. Nat Med 2012;18:892-901. [Crossref] [PubMed]
  9. Serra V, Eichhorn PJ, Garcia-Garcia C, et al. RSK3/4 mediate resistance to PI3K pathway inhibitors in breast cancer. J Clin Invest 2013;123:2551-63. [Crossref] [PubMed]
  10. Blumenschein GR Jr, Smit EF, Planchard D, et al. A randomized phase II study of the MEK1/MEK2 inhibitor trametinib (GSK1120212) compared with docetaxel in KRAS-mutant advanced non-small-cell lung cancer (NSCLC)dagger. Ann Oncol 2015;26:894-901. [Crossref] [PubMed]
  11. Menaa F. Latest approved therapies for metastatic melanoma: what comes next? J Skin Cancer 2013;2013:735282. [Crossref] [PubMed]
  12. Turke AB, Song Y, Costa C, et al. MEK inhibition leads to PI3K/AKT activation by relieving a negative feedback on ERBB receptors. Cancer Res 2012;72:3228-37. [Crossref] [PubMed]
  13. Meng J, Dai B, Fang B, et al. Combination treatment with MEK and AKT inhibitors is more effective than each drug alone in human non-small cell lung cancer in vitro and in vivo. PLoS One 2010;5:e14124. [Crossref] [PubMed]
  14. Tolcher AW, Patnaik A, Papadopoulos KP, et al. Phase I study of the MEK inhibitor trametinib in combination with the AKT inhibitor afuresertib in patients with solid tumors and multiple myeloma. Cancer Chemother Pharmacol 2015;75:183-9. [Crossref] [PubMed]
  15. Grilley-Olson JE, Bedard PL, Fasolo A, et al. A phase Ib dose-escalation study of the MEK inhibitor trametinib in combination with the PI3K/mTOR inhibitor GSK2126458 in patients with advanced solid tumors. Invest New Drugs 2016;34:740-9. [Crossref] [PubMed]
  16. Park KS, Oh B, Lee MH, et al. The HSP90 inhibitor, NVP-AUY922, sensitizes KRAS-mutant non-small cell lung cancer with intrinsic resistance to MEK inhibitor, trametinib. Cancer Lett 2016;372:75-81. [Crossref] [PubMed]
  17. Park KS, Yang H, Choi J, et al. The HSP90 inhibitor, NVP-AUY922, attenuates intrinsic PI3K inhibitor resistance in KRAS-mutant non-small cell lung cancer. Cancer Lett 2017;406:47-53. [Crossref] [PubMed]
  18. Dumic J, Dabelic S, Flogel M. Galectin-3: an open-ended story. Biochim Biophys Acta 2006;1760:616-35. [Crossref] [PubMed]
  19. Fukushi J, Makagiansar IT, Stallcup WB. NG2 proteoglycan promotes endothelial cell motility and angiogenesis via engagement of galectin-3 and alpha3beta1 integrin. Mol Biol Cell 2004;15:3580-90. [Crossref] [PubMed]
  20. Blanchard H, Yu X, Collins PM, et al. Galectin-3 inhibitors: a patent review (2008-present). Expert Opin Ther Pat 2014;24:1053-65. [Crossref] [PubMed]
  21. Newlaczyl AU, Yu LG. Galectin-3--a jack-of-all-trades in cancer. Cancer Lett 2011;313:123-8. [Crossref] [PubMed]
  22. Seguin L, Camargo MF, Wettersten HI, et al. Galectin-3, a Druggable Vulnerability for KRAS-Addicted Cancers. Cancer Discov 2017;7:1464-79. [Crossref] [PubMed]
  23. Yamaguchi H, Takagi J, Miyamae T, et al. Milk fat globule EGF Wfactor 8 in the serum of human patients of systemic lupus erythematosus. J Leukoc Biol 2008;83:1300-7. [Crossref] [PubMed]
  24. Seguin L, Kato S, Franovic A, et al. An integrin beta(3)-KRAS-RalB complex drives tumour stemness and resistance to EGFR inhibition. Nat Cell Biol 2014;16:457-68. [Crossref] [PubMed]
  25. Zhang L, Wang P, Qin Y, et al. RN1, a novel galectin-3 inhibitor, inhibits pancreatic cancer cell growth in vitro and in vivo via blocking galectin-3 associated signaling pathways. Oncogene 2017;36:1297-308. [Crossref] [PubMed]
Cite this article as: Park KS, Lee DH. The importance of galectin-3 as a novel target for lung cancer patients harboring KRAS mutation. Transl Cancer Res 2018;7(Suppl 1):S85-S88. doi: 10.21037/tcr.2018.01.10
