Cinnamophilin enhances temozolomide-induced cytotoxicity against malignant glioma: the roles of ROS and cell cycle arrest

Introduction

Glioblastoma multiforme (GBM) is the most malignant primary brain tumor in adults. TMZ, an oral alkylating agent, is used as a standard chemotherapeutic drug in patients with GBM after maximal surgical resection (1). Although TMZ substantially improves the quality of life and prolongs the survival of glioblastoma patients, glioblastoma eventually develops resistance. TMZ increases survival of patients with GBM only by 12 to 14.6 months after diagnosis; thus, there is an urgent requirement for the development of combined medicines for the treatment of GBM (2,3). In GBM, TMZ induces O⁶-methylguanine formation and impairs thymine during the subsequent DNA replication cycle, leading to the damage of DNA strands and consequent activation of cell death pathways (4,5). The correction of DNA modification by the repair enzyme O6-methylguanine-DNA methyltransferase (MGMT) often causes drug resistance to TMZ (6). Although the MGMT-associated pathway is the main target to overcome TMZ resistance in GBM patients, many other mechanisms have also been targeted to strengthen TMZ cytotoxicity during cancer therapy (7). Several studies have shown that TMZ induces reactive oxygen species (ROS) production during the treatment of GBM, which plays a role in manipulating the cell cycle of cancer cells (8-10). The role of ROS in the development of chemoresistance to TMZ treatment is still under debate.

Studies have confirmed that TMZ-induced accumulation of ROS influences GBM cell viability through various physiological consequences, such as severe DNA damage (11-13), apoptosis (14-16), autophagy (9,14,17), cell cycle arrest (11,18), and cellular senescence. However, whether the shift of glioma cells into G2/M arrest and autophagy is a pro-survival mechanism remains unclear. Studies on resveratrol, an antioxidant, have shown that antioxidant treatment inhibits ROS burst, suppresses autophagy, and augments TMZ-induced apoptosis in glioma cells (8,9). Other studies have suggested that G2 arrest may play a pro-survival role (11). The resveratrol-mediated abrogation of G2 arrest leads to mitotic catastrophe in glioma cells and reinforces TMZ-induced cell senescence. In contrast, data from different types of glioma cells have demonstrated that in TMZ-sensitive cells, cytoplasmic ROS levels contribute to autophagy and cytotoxicity, whereas in TMZ-resistant cells, TMZ fails to induce ROS and autophagy (19). Further studies are warranted to elucidate the role of ROS and downstream cytotoxicity- or resistance-related signaling in glioma treated with TMZ.

We have previously shown that cinnamophilin {[8R, 8′S]-4, 4′-dihydroxy-3, 3′-dimethoxy-7-oxo-8, 8′-neolignan; CINN} isolated from Cinnamomum philippinense is a free radical scavenger that can inhibit ROS production in cells and brain tissue (20-22). Similar to resveratrol, CINN can penetrate the blood-brain barrier and reduce oxidative damage by scavenging toxic free radicals (22,23). Whether CINN can enhance the therapeutic effects of TMZ against brain tumors remains unclear. Identifying the adjuvant effects of antioxidants provides an opportunity to assess the roles of ROS and cell cycle arrest during TMZ therapy. In this study, we aimed to measure ROS levels in glioma cells following a combined treatment of CINN and TMZ. The antitumor efficacy was monitored by the cell viability assay and apoptosis induction using glioma cell lines and a xenograft mouse model following the combined treatment. Additionally, we assessed the changes in cell cycle progression and autophagy after the combined treatment.

We present the following article in accordance with the ARRIVE reporting checklist (available at https://dx.doi.org/10.21037/tcr-20-3426).

Methods

Chemicals

Unless otherwise stated, all chemicals were purchased from Sigma-Aldrich Co. (St. Louis, MO, USA). CINN was a generous gift from Dr. Wu (School of Pharmacy, National Cheng Kung University, Tainan City).

Glioblastoma cell culture

The human glioblastoma cell line U87 MG of unknown origin was obtained from the American Tissue Culture Collection (U87 MG ATCC; RRID: CVCL_0022). The human astrocytoma cell lines U-118 and U373 were gifts provided by Professor Sze (Department of Cell Biology and Anatomy, College of Medicine, National Cheng Kung University, Tainan). Cell lines were maintained in Minimum Essential Medium (MEM)-based culture medium (Gibco; Thermo Fisher Scientific, Inc., Waltham, MA, USA) and cultured in an incubator at 37 °C and 5% CO₂. The medium was supplemented with 10% fetal bovine serum (FBS; Gibco; Thermo Fisher Scientific, Inc.), penicillin (100 U/mL), streptomycin (100 µg/mL), sodium pyruvate (1 mM), and nonessential amino acids (1 mM, Invitrogen, Thermo Fisher Scientific, Inc.). The cells were thawed and grown for a maximum of 20 passages.

Cell viability assay

Cell viability was evaluated by the 3-(4,5-dimethyl-2-thiazolyl)-2,5-dimethyl-2H-tetrazolium bromide (MTT) assay using a commercial kit, according to the manufacturer’s instructions. Glioma cells (4×10³) in 100 µL MEM supplemented with 10% FBS were seeded into a 96-well plate and incubated at 37 °C in a 5% CO₂ humidified incubator. After a 24-h incubation, the cells were treated with various TMZ plus CINN concentrations for 72 h. After adding MTT solution (50 µL) to the plates, the cells were incubated for 4 h. The supernatants were carefully aspirated, and the formazan crystals were completely solubilized using DMSO. Absorbance was measured at 550 nm using a Multiskan EX reader (Thermo Scientific, Rockford, IL, USA). The following formula was used to calculate cell viability: percentage cell viability = (absorbance of the experimental samples/absorbance of the controls) ×100. The viability of untreated cells was regarded as 100%.

Isobolographic analysis to determine synergy

Isobolographic analyses of TMZ and CINN were performed according to published protocols (9,24,25). The IC₅₀ values of TMZ and CINN were then calculated and plotted as a percentage of each drug (fractional inhibitory concentration = concentration of TMZ and CINN in combination/concentration of each drug alone). When the sum of the fractions of the two compounds was less than 1, the combination was considered synergistic, and the graph showed a concave shape.

Animal preparation

Animal experiments were approved by and conducted under the strict guidelines of the Subcommittee on Research-Animal Care of NCKU University Medical Center (approval no. 106112), and the standards met the guidelines for the care and use of animals of Taiwan National Institutes of Health. Fifteen 6-week-old female nude mice (BALB/c nu/nu) were purchased from the National Laboratory Animal Center for tumor xenograft experiments. Mice were housed in groups in a pathogen-free environment under controlled conditions: 24±1 °C, 60% humidity, and a 12 h light/dark cycle, with ad libitum access to mice chow.

Tumor xenografts

We subcutaneously injected 5×10⁶ U87 MG cells in 0.1 mL of MEM with 10% FBS into the right hind flank of 15 female nude mice to induce xenograft tumors. The mice developed visible tumors within three weeks of injection. The tumors were allowed to grow to approximately 60 mm³ to initiate the medical tests. Subsequently, the mice were randomly assigned to control (n=3), TMZ (n=3), CINN (n=3), and TMZ plus CINN (n=6) groups and injected with saline and 45% aqueous hydroxypropyl-cyclodextrin (HPCD; Sigma Chemical Co., St Louis, MO, USA), HPCD and TMZ (10 mg/kg), saline and CINN (80 mg/kg), and a combination of TMZ (10 mg/kg) and CINN (80 mg/kg), respectively, for 15 days. The tumor volume and body weight were measured once every two days, starting from the first day of treatment. Tumor volumes were calculated as previously described (25): tumor volume = (4π/3) × (width/2)²× (length/2).

ROS measurement

The intracellular ROS H₂O₂, and O₂⁻ were quantified by labeling dihydrorhodamine-123 (DHR-123) and dihydroethidium (DHE), respectively, by flow cytometric analysis. U87 MG cells were treated with TMZ or CINN in MEM with 10% FBS for 72 h. The cells were then harvested by trypsinization, followed by centrifugation and resuspension in phosphate-buffered saline (PBS), and stained with 5 µM DHR123 and 10 µM DHE for 30 min at 37 °C in the dark. The cell populations were gated according to the FSC/SSC scatter on a FACS Calibur cytometer (BD Biosciences, San Jose, CA, USA). Data were analyzed using the CellQuest software (BD Biosciences). The percentage increase in the fluorescence peak represents the level of ROS production.

Comet assay

U87 MG cells were treated with TMZ, CINN, or combinations of both for 48 and 72 h. After drug treatment, cells were harvested to examine DNA damage using the comet assay (single-cell gel electroporesis), as previously described (26,27). Cells were washed with PBS and mixed with low-melting agarose (1:10) before being loaded onto microscope slides. Cell lysis was performed at 4 °C (alkaline comet assay) and 37 °C (neutral comet assay). After electrophoresis for 25 min at 25 °C, DNA was stained with DAPI and imaged using a Zeiss Axioskop 2 Mot microscope equipped with a digital camera (CoolSnap-Pro, Media Cybernetics, Carlsbad, CA, USA). DNA damage was determined by the cell head length or cell tail length (µm) and the percentage of DAPI-stained comet cells using the Image J and Open Comet 1.3 software. These experiments were repeated at least three times, with an average of 200 cells each time.

Terminal deoxynucleotidyl transferase-mediated dUTP nick end labeling (TUNEL) assay

The TUNEL assay was performed using an in situ cell death detection kit according to the manufacturer’s protocol (Calbiochem, Merck Biosciences, Bad Soden, Germany). Cells were seeded onto polyline-precoated coverslips for 24 h before treating with TMZ plus CINN for 24 h. Then, the cells were fixed with 4% paraformaldehyde prepared in 0.1 M PBS, followed by treatment with 3% H₂O₂ at room temperature for 5 min. The cells were digested with freshly diluted proteinase K (1:200) at room temperature for 10 min. The TdT equilibration buffer was then added at room temperature for 30 min, the cells were maintained in the TdT labeling reaction mixture at 37 °C for 2 h in the dark, and the nuclei were stained with DAPI for an examination under a fluorescence microscope at 200× magnification. The results are presented as the ratio of TUNEL-positive cells to the total number of counted cells.

Cell cycle analysis

After treating U87 MG cells with TMZ, CINN, or combinations of both, their cell cycle distribution was assessed by flow cytometry following propidium iodide (PI) staining. The cells were collected after trypsinization and centrifugation at the indicated time points. The cell pellets were washed twice with Tris-buffered saline (TBS; J.T. Baker, Thermo Fisher Scientific, Inc.) and fixed in ice-cold 70% ethanol at 4 °C overnight. Cells were resuspended at room temperature for 30 min in TBS containing 500 µg/mL of RNase A and stained with PI (10 µg/mL) for 30 min at room temperature in the dark. Cell cycle distribution was analyzed using a FACSCalibur flow cytometer (Becton Dickinson, San Jose, CA, USA). The DNA histograms were further evaluated using the CellQuest software (Becton Dickinson) on a Power Macintosh 7,300/200 computer to calculate the percentage of cells in various cell cycle phases.

Western blotting

Protein sample preparation and immunoblotting were performed as previously described (28). Cells were lysed with lysis buffer containing 1% Triton X-100, 20 mM Tris-HCl (pH 7.5), 150 mM NaCl, 0.5% deoxycholate, 1 mM EDTA, and 0.1% sodium dodecyl sulfate. The samples were collected after centrifugation at 18,000× g for 60 min at 4 °C. After mixing with sodium dodecyl sulfate buffer and heating at 100 °C for 10 min, the protein concentrations were determined using a BCA protein assay kit (Thermo Scientific). For western blotting, samples (40 µg) were loaded and separated by sodium dodecyl sulfate-polyacrylamide gel electrophoresis, transferred onto polyvinylidene difluoride microporous membranes (PVDF, Millipore, Billerica, MA, USA), and blocked in 5% milk prepared in Tris-buffered solution (pH 7.6). The membranes were incubated with primary antibodies against LC3 (cat. No. PM036; 1:100; MBL, Nagoya, Japan), cyclin B (cat. No. GTX100911; 1:1,000; GeneTex, Taipei, Taiwan), pCdk1 (Y15; cat. No. GTX; 128155; 1:1,000; GeneTex), cleaved caspase 3 (cat. No. 9664S; 1:1,000; Cell Signaling Technology, Inc., Danvers, MA, USA), caspase 3 (cat. No. 9662; 1:1,000; Cell Signaling Technology), and β-actin (cat. No. MAB1501; 1:10,000; EMD Millipore; Merck KGaA, Darmstadt, Germany) and then diluted in blocking buffer at 4 °C overnight. Finally, the membranes were incubated with horseradish peroxidase-conjugated anti-rabbit or anti-mouse IgG (cat. No. 111-035-144/115-035-003; 1:5,000; Jackson ImmunoResearch, West Grove, PA, USA). Bound antibodies were visualized using the Amersham ECL system (GE Healthcare Bio-Sciences Corp., Piscataway, NJ, USA). A luminescent image analyzer (Fujifilm LAS-3000; Fuji Photo Film Co., Tokyo, Japan) was used to measure the optical density.

Immunohistochemistry for LC3

U87 MG cells were seeded onto polyline-precoated coverslips for 24 h and treated with TMZ, CINN, or combinations of both for 72 h. Then, the cells were fixed in 4% paraformaldehyde in PBS for 20 min at room temperature, permeabilized in PBS supplemented with 0.5% Triton X-100 and 5% FBS, and incubated with the primary antibody LC3 prepared in blocking buffer (1:100) at 4 °C overnight. After washing with PBS, the cells were incubated with goat anti-mouse IgG conjugated with fluorescein (FITC; cat. No.715-096-151, 1:5,000; Jackson ImmunoResearch, West Grove, PA, USA). The cell nuclei were stained with DAPI Fluoromount G^® (SouthernBiotech, Birmingham, AL, USA) and examined under a fluorescence microscope (Olympus IX71, Olympus Optical Co. Ltd, Tokyo, Japan). The fluorescence images illustrating FITC (green) and DAPI (blue) staining were superimposed using Image-Pro Plus 5.1 (Media Cybernetics, Silver Spring, MD, USA).

Statistical analysis

Data are presented as the mean ± standard deviation of the mean. The significance of the difference between means was assessed by one-way analysis of variance (one-way ANOVA) with Fisher’s protected least significant difference (LSD) post hoc comparison. Statistical significance was set at P≤0.05.

Results

CINN- and TMZ-induced cytotoxicity in different cell lines

Human glioblastoma cell lines, U87 MG, U-118, and U373, were challenged with TMZ and CINN at concentrations ranging from 4 to 1,000 µM for 72 h to perform the MTT assay. As shown in Figure 1, TMZ and CINN alone decreased viability of all types of glioma cells in a dose-dependent manner. The IC₅₀ values (concentration resulting in cell viability of 50% in control) of TMZ and CINN were 849.32 and 375.52 µM, respectively, in U87 MG cells. TMZ (100 and 200 µM) and CINN (20, 50, and 100 µM) slightly decreased cell viability in cultured cells. Based on these observations, we selected the U87 MG cell line to test these concentrations of TMZ and CINN to evaluate the synergistic effects on cytotoxicity.

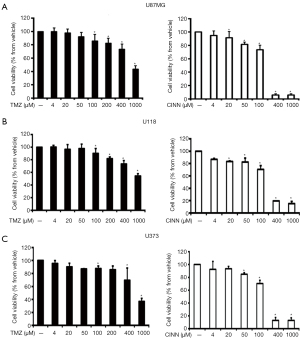

Figure 1 TMZ and CINN reduced glioma cell viability in a dose-dependent manner. The cytotoxicity of TMZ (left panel) and CINN (right panel) at concentrations ranging from of 4 to 1,000 µM for 72 h in the U87 MG (A), U-118 (B), and U373 (C) cell lines were determined by MTT assay. *, P≤0.05 compared with vehicle-treated cells. n=3 for primary neuron cells and n=4 for U87 MG cells.

CINN effectively enhanced the cytotoxicity of TMZ by increasing DNA damage and apoptosis

Treatment of U87 MG cells with TMZ plus CINN significantly improved cell toxicity compared to CINN or TMZ alone (Figure 2A; P≤0.05). Isobolographic analysis was conducted to determine the synergistic effect and confirm that CINN sensitizes U87 MG cells to TMZ-induced cytotoxicity (Figure 2B). The IC₅₀ values derived from different concentrations of TMZ (100 and 200 µM) and CINN (20, 50, and 100 µM) are shown in Figure 2B. The IC₅₀ of CINN was approximately 137 or 103 µM when combined with TMZ. TMZ (100 and 200 µM) combined with CINN was significantly lower than that of TMZ alone (849.32 µM), suggesting that CINN can sensitize U87 MG cells to TMZ.

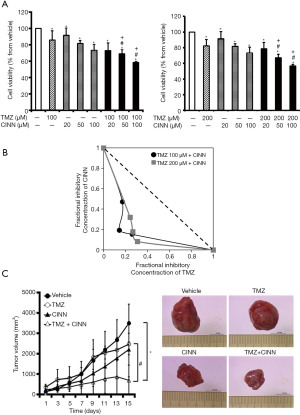

Figure 2 CINN enhanced TMZ-induced cytotoxicity in human glioma cells and the xenograft model. (A) U87 MG cells were treated with indicated doses of TMZ, CINN, or combinations of both for 72 h. The effects of the drugs on the viability of U87 MG cells were determined by MTT assay. n=6 for U87 MG cells. (B) The IC₅₀ values of each drug in combination and the synergistic effects were determined by isobolographic analysis. Isobolographic analysis of TMZ at 100 and 200 µM was carried out separately. The dotted line on the diagram represents the combined effects of the two drugs, indicating it is additive. (C) Mice with U87 MG xenografts were injected every day with 2 mg/kg TMZ, 80 mg/kg CINN, or combinations of both, and the tumor volume was measured. At the end of the experiment (15 days), tumor tissues were excised from each mouse. *, P≤0.05 compared with vehicle-treated cells; ^#, P≤0.05 compared with TMZ-treated cells; ⁺, P≤0.05 compared with CINN-treated cells.

Combined treatment of CINN and TMZ reduced the growth of glioma xenografts

To investigate the synergistic inhibition of tumor growth by CINN and TMZ in vivo, we generated tumor xenografts by subcutaneously injecting U87 MG cells into immunodeficient mice. As demonstrated in Figure 2C (left panel), vehicle-treated mice exhibited tumors that grew to an average size of 3.50 cm³ within 15 days. Mice treated with TMZ or CINN alone experienced a moderate decrease in tumor volume compared to the control. However, the tumor volumes in the TMZ plus CINN-treated groups were not significantly lower. Significant reduction in tumor volumes was observed on day 15 in the TMZ plus CINN-treated groups compared with the vehicle group. On day 15, the tumor size in the TMZ plus CINN-treated group was approximately 0.7 cm³, whereas, in the TMZ-treated group, the average tumor size was 2.4 cm³. Figure 2C (right panel) shows the typical xenografts. The average tumor weight in TMZ plus CINN-treated mice was lower than that in TMZ-treated mice. Our data indicate that combined treatment of TMZ and CINN was therapeutically effective in vivo.

CINN reduced TMZ-mediated ROS production

Our previous studies showed that CINN inhibited ROS burst by reducing O₂⁻ and H₂O₂ production (21,22,29). We examined whether CINN was also able to inhibit TMZ-induced ROS burst in U87 MG cells. After treatment with 100 µM TMZ, O₂⁻ and H₂O₂ levels significantly increased in U87 MG cells compared to the vehicle control (Figure 3; P≤0.05). However, treatment with 50 µM CINN for 1 h considerably reduced O₂⁻ and H₂O₂ levels (2.3- and 3.4-fold, respectively) in U87 MG cells compared with TMZ alone. Furthermore, 100 µM CINN did not increase the suppression of TMZ-induced ROS burst, which indicated that 50 µM CINN was sufficient to eliminate most of the TMZ-induced ROS production.

Figure 3 CINN suppressed TMZ-induced ROS production in human glioma cells. U87 MG cells were pretreated with or without CINN (50 µM) for 1 h followed by TMZ (100 µM) for 72 h, and then analyzed by DHE and DHR-123 staining by flow cytometry. *, P≤0.05 compared with vehicle-treated cells; ^#, P≤0.05 compared with TMZ-treated cells. n=4 for U87 MG cells.

CINN effectively enhanced TMZ cytotoxicity by increasing DNA damage and apoptosis

We investigated the effect of CINN on TMZ-induced cytotoxicity in U87 MG cells. Figure 4A shows the results of the comet assay, a sensitive method to investigate DNA damage; in particular, it identifies individual apoptotic cells with highly fragmented DNA. When U87 MG cells were subjected to the combined treatment, the percentage of damaged cells that exhibited the comet tail along the cell body increased 1.6-fold, while the tail length increased up to 1.4-fold when compared with TMZ treatment alone (Figure 4A; P≤0.05). Similarly, the level of cleaved caspase 3 was higher in TMZ plus CINN-treated cells than in TMZ-treated cells (Figure 4B; P≤0.05). Moreover, the percentage of TUNEL-positive cells, an indication of apoptosis, was significantly greater in the TMZ plus CINN-treated group than in the groups treated with TMZ or CINN alone (Figure 4C; P≤0.05). These results demonstrate that CINN can enhance TMZ-induced DNA damage and apoptosis.

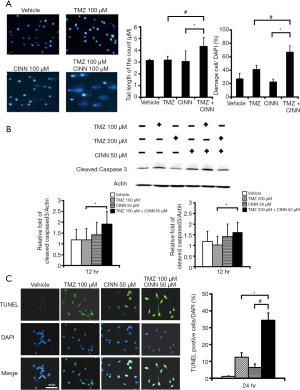

Figure 4 The combined administration of CINN and TMZ induced DNA damage and apoptosis in human glioma cells. (A) U87 MG cells were pretreated with or without CINN (100 µM) for 1 h, followed by TMZ (100 µM) for 72 h. The effect of DNA damage was detected by the comet assay. Representative microphotographs of cells subjected to the comet assay and stained with DAPI (blue, 400×) are shown in the left panel. n=3 for U87 MG cells. (B) U87 MG cells were pretreated with or without CINN (50 µM) for 1 h, followed by TMZ (100 or 200 µM) for 12 and 24 h. The effects of drug-induced apoptosis were evaluated using caspase 3. (C) TUNEL assay was used to investigate U87 MG cell apoptosis (blue: DAPI, green: TUNEL, 400×). *, P≤0.05 compared with TMZ-treated cells; ^#, P≤0.05 compared with CINN-treated cells. n=6 for immunoblotting and n=3 for TUNEL assay.

CINN suppressed TMZ-induced cell cycle arrest

Previous studies have demonstrated that TMZ-induced ROS participate in the regulation of cell cycle arrest in glioma cells (9,11,30,31). We investigated whether CINN causes G2/M arrest in TMZ-treated U87 MG cells by DNA flow cytometry. We confirmed that TMZ treatment (100 µM) substantially increased the number of U87 MG cells in the G2/M phase and reached a plateau between 48 and 72 h (Figure 5A). CINN reversed TMZ-induced cell cycle distribution by reducing the cell population in the G2/M phase at a time window between 48 and 72 h of treatment. The majority of U87 MG cells (approximately 40% of total cells) in G2 arrest shifted to other phases in the presence of TMZ (100 µM) plus CINN (50 µM) between 48 and 72 h. Increasing the concentration of CINN to 100 µM in the combined treatment did not further reduce the cell population in the G2/M phase when compared to 50 µM CINN (data not shown); this result was consistent with that from ROS level analysis (Figure 3). The expression levels of cyclin B and phosphorylation of cyclin-dependent kinase 1, which are G2/M checkpoint and G1/S regulatory proteins, were determined by western blotting. After U87 MG cells were treated with TMZ for 12 and 24 h, the expression of cyclin B decreased, while the level of Cdk1 phosphorylation increased (Figure 5B). Nevertheless, the changes in TMZ-induced cell cycle regulators in U87 MG cells between 12 and 24 h were reversed after combined treatment (TMZ plus CINN at 100 and 50 µM), with a substantial increase in cyclin B expression by 2.7- and 2-fold, and a decrease in phosphorylation of cyclin-dependent kinase 1 by approximately 38% (Figure 5B; P≤0.05). It is worth mentioning that the differences in regulatory proteins appeared 12 h before the differences in cell cycle distributions between the TMZ alone and TMZ plus CINN treatments, suggesting a cause-effect relationship between regulatory proteins and cell cycle events.

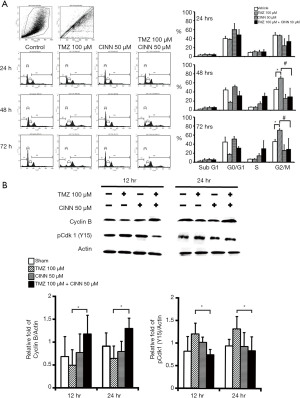

Figure 5 CINN decreased TMZ-induced G2/M arrest in human glioma cells. (A) U87 MG cells were pretreated with or without CINN (50 µM) for 1 h and then with TMZ (100 µM) for 72 h. The effects of TMZ, CINN, and TMZ + CINN on the cell cycle were determined by DNA flow cytometry. n=3 for U87 MG cell lines. (B) The combined treatment of CINN and TMZ affected the G2/M checkpoint in human glioma cells. U87 MG cells were pretreated with or without CINN (50 µM) for 1 h, followed by TMZ (100 µM). The protein expression of cyclin B in U87 MG cells was determined by western blotting. Combined treatment of TMZ and CINN considerably increased cyclin B expression in U87 MG cells. *, P≤0.05 compared with vehicle-treated cells; ^#, P≤0.05 compared with TMZ-treated cells. n=5 for U87 MG cells.

CINN reduced TMZ-induced autophagy in human glioma cells

To investigate the effect of CINN on TMZ-induced autophagy in U87 MG cells, we measured LC3 protein levels by western blotting and immunofluorescence staining. U87 MG cells were pretreated with or without CINN (50 µM) for 1 h, followed by TMZ (100 or 200 µM). Cell lysates were collected at the indicated times and analyzed by immunoblotting with antibodies against LC3 or β-actin. The combined treatment of TMZ and CINN lowered (P≤0.05) LC3-II protein expression after 12 and 24 h compared with TMZ alone (Figure 6A). Immunofluorescence staining also revealed a reduction in LC3 staining in U87 MG cells upon combined treatment (Figure 6B).

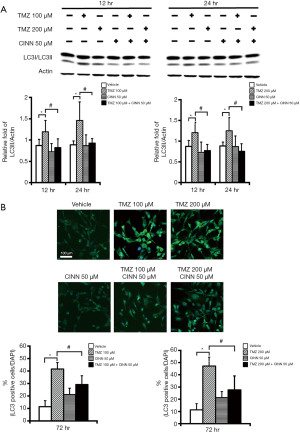

Figure 6 CINN reduced TMZ-induced autophagy in human glioma cells. (A) U87 MG cells were pretreated with or without CINN (50 µM) for 1 h, followed by TMZ (100 or 200 µM). β-actin was used as an internal control to normalize the number of proteins applied in each lane. The protein expression of LC3 in U87 MG cells was determined at the indicated times. (B) LC3 expression in U87 MG cells was observed by immunofluorescence staining (blue: DAPI, green: LC 3, 400×). *, P≤0.05 compared with vehicle-treated cells; ^#, P≤0.05 compared with TMZ-treated cells. n=6 for U87 MG cells.

Discussion

Many TMZ-based adjuvant treatments have been proposed to improve the efficacy of cytotoxicity as the overall survival rate is low in the management of GBM, and most patients eventually develop drug resistance to standard TMZ therapy. Here, we revealed that CINN at a concentration of 50 µM enhanced TMZ-induced cytotoxicity in glioma cells. The combined administration of CINN and TMZ at 100 µM exerted a potent antitumor action in the glioma cell line U87 MG in a dose-dependent manner (Figure 2). The enhancement of cytotoxicity against tumor growth in the xenograft animal model treated with CINN plus TMZ further demonstrated combined treatment of CINN and TMZ more effective than TMZ only in vivo. Our previous studies have shown that CINN can pass through the blood-brain barrier and is removed gradually in the brain (22). A low dose of CINN (10 µM) alone exerted antiapoptotic effects to protect neurons against ischemic stroke by suppressing oxidative stress in the cerebrum in an animal model (22). Thus, combined treatment of CINN and TMZ may be effective in treating patients with GBM.

The mechanism by which CINN protects neuronal cells against ischemia-reperfusion is linked to its ability to scavenge ROS and reduce ROS-induced apoptosis (21,22). ROS can exert numerous effects depending on the signaling pathway they regulate (32). We examined whether the suppression of ROS by CINN might affect TMZ-induced cytotoxicity, and found that the reduction of ROS enhanced TMZ-induced cytotoxicity and not lower it. In a study on resveratrol, TMZ-induced ROS burst was maximum at 2–3 days in glioma cell lines (8,9). TMZ-induced ROS burst is a protective signal that helps glioma cells escape apoptotic cell death, and the antioxidant resveratrol enhances the cytotoxicity of TMZ by reducing ROS (9). Our data are consistent with those of these previous studies on resveratrol, that is, treatment with the antioxidant CINN (50 µM) for 1 h completely abolished TMZ-induced ROS production at 72 h. Our group has previously shown that CINN effectively inhibits Fe3+-induced lipid peroxidation, which is superior to vitamin E and β-estradiol. In the 2,2′-azino-bis(3-ethylbenzothiazoline-6-sulfonate) (ABTS) radical cation scavenging assay, the IC₅₀ value of CINN was 11.2 µM, which is higher than that of vitamin C (IC₅₀=23.3 µM) (21). Moreover, we previously reported that 50 µM CINN inhibited more than 50% of phorbol 12-myristate 13-acetate-induced O₂⁻ and H₂O₂ production in neutrophils (29). Here, TMZ treatment caused the accumulation of ROS, including O₂^- and H₂O₂. The source of ROS is mainly the mitochondria owing to the operation of the respiratory chain, and excessive ROS can damage mitochondria, resulting in cytoprotective autophagy (8,33). Our findings concur with those of Lin et al., in that, antioxidants, such as CINN and resveratrol, may elevate TMZ-induced cytotoxicity by inhibiting ROS burst in glioma cell lines. Our previous studies demonstrated that CINN can inhibit ROS burst by reducing O₂⁻ and H₂O₂ production (21,22,29).

Several studies have reported that the activation of G2 arrest provides time for glioma DNA repair during the treatment of TMZ (10). We previously indicated that grade III and grade IV gliomas have higher G2/M-phase and S+G2/M-phase fractions than grade I/II gliomas, which implies that G2/M may be associated with the severity of GBM (34). Hirose and colleagues indicated that TMZ induces G2/M arrest in glioma cells, and inhibition of the G2 checkpoint pathway enhances cytotoxicity (35). Studies on adjuvant treatment with resveratrol and TMZ have shown that TMZ-induced G2 arrest is inhibited (11). The induction of G2 arrest by pretreatment with TMZ for 48 h is not reversed by resveratrol, suggesting that resveratrol suppresses TMZ-induced downstream signaling that causes G2 arrest (11). As TMZ-induced ROS accumulation increased in the first 48 h after the treatment, it is plausible that TMZ-induced ROS was responsible for the induction of G2 arrest. We provided evidence consistent with the notion that the combined treatment of CINN and TMZ enhanced the efficacy of TMZ by inhibiting G2/M arrest via the inhibition of TMZ-induced ROS burst.

Following the treatment of glioma cells with TMZ, the G2 checkpoint in the cell cycle exhibited two distinct effects on cells following DNA damage: (I) arrest of cells in the G2 phase and (II) triggering of cytoprotective activity, which results in resistance to TMZ. TMZ was previously reported to play a critical role in the autophagy system; it might lead the cell into a pro-survival or pro-apoptotic situation (19,36). Our results showed that LC3 protein level, a hallmark of autophagy, was increased in TMZ-treated U87 MG cells. However, combined treatment of TMZ and CINN lowered LC3-II protein expression after 12 and 24 h compared with TMZ alone. Immunofluorescence staining also revealed a reduction in LC3 protein level when U87 MG cells were treated with a combination of TMZ and CINN. We illustrated that CINN suppressed TMZ-induced autophagy, although the levels of Beclin 1 and p21 were not investigated in our study.

In conclusion, TMZ-induced ROS production in glioma cells was reduced when cells were pretreated with the antioxidant CINN. CINN treatment increased the cytotoxicity of TMZ, which may have resulted from a decrease in G2/M arrest and an increase in apoptotic cell death. The combination of CINN and TMZ could be of potential clinical interest for the management of GBM.

Acknowledgments

We thank the ministry of science and technology and office of Research-Animal Care of national Cheng Kung University for research permission.

Funding: The financial support was provided by the ministry of science and technology in Taiwan (106-2314-B-006-031).

Footnote

Reporting Checklist: The authors have completed the ARRIVE reporting checklist. Available at https://dx.doi.org/10.21037/tcr-20-3426

Data Sharing Statement: Available at https://dx.doi.org/10.21037/tcr-20-3426

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/tcr-20-3426). All authors report that the financial support was provided by the ministry of science and technology in Taiwan. The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. Animal experiments were approved by and conducted under the strict guidelines of the Subcommittee on Research-Animal Care of NCKU University Medical Center (approval no. 106112), and the standards met the guidelines for the care and use of animals of Taiwan National Institutes of Health.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
