Screening of significant oncogenic changes in air pollution-related lung cancer in Chinese population

Madiha Kanwal1,2, Xiaojie Ding1, Weiming Lin3, Yi Cao1,3

1Laboratory of Molecular and Experimental Pathology, Kunming Institute of Zoology, Chinese Academy of Sciences, Kunming, China; 2Kunming College of Life Sciences, University of Chinese Academy of Sciences, Kunming, China; 3Department of Veterinary Medicine, College of Life Sciences, Longyan University, Longyan, China

Contributions: (I) Conception and design: Y Cao, M Kanwal; (II) Administrative support: Y Cao, W Lin; (III) Provision of study materials or patients: Y Cao, W Lin; (IV) Collection and assembly of data: M Kanwal, X Ding, Y Cao; (V) Data analysis and interpretation: M Kanwal, X Ding,Y Cao; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Prof. Dr. Yi Cao. Laboratory of Molecular and Experimental Pathology, Kunming Institute of Zoology, Chinese Academy of Sciences, 32 Jiaochang Donglu, Kunming, China. Email:

Background: Air pollution-related lung cancer has been considered as a deteriorating public health problem worldwide, particularly in developing countries. The highly air polluted regions in China particularly Xuanwei and Fuyuan counties have markedly high lung cancer rates and are considered as good models to study air pollution-related lung cancer. The present study investigated the clinically significant oncogenes in air pollution-related lung cancers.

Methods: A combination of reverse transcriptase PCR (RT-PCR) and DNA sequencing was applied to examine the expression, mutations, or fusions of target genes, including human epidermal growth factor receptor 2 (HER2), echinoderm microtubule-associated protein-like 4-anaplastic lymphoma kinase (EML4-ALK), and cluster of differentiation 74-ROS proto-oncogene 1 (CD74-ROS1).

Results: Of the 82 patients with lung cancer, 20.7% (17/82) exhibited HER2 up-regulation, and 1.2% (1/82) harbored HER2 insertion at exon 20. HER2 overexpression was not associated with air pollution levels and smoking status. A total of 6.1% (5/82) samples exhibited ALK gene rearrangements; two belonged to EML4-E2 + ALK-E20 and three were EML4-E13 + ALK-E20; all the five cases occurred either in smokers or in patients from the most air-polluted region. A total of 3.6% (3/82) carried the CD74-ROS1 fusion gene (CD74-E6 + ROS1-E34); the fusion event was not statistically associated with air pollution levels.

Conclusions: The high rates of prevalence indicated in the present study suggest that the screening of HER2 overexpression and EML4-ALK fusion events may assist in guiding treatment in air pollution-related lung cancer; the RT-PCR-based test proposed in this study may be a useful tool in clinical applications to screen these genetic changes.

Keywords: Air pollution; lung cancer; reverse transcriptase PCR (RT-PCR); HER2; EML4-ALK; CD74-ROS1

Submitted Jul 14, 2019. Accepted for publication Jan 03, 2020.

doi: 10.21037/tcr-19-1314


Lung cancer is one of the most common malignancies and has been the leading cause of cancer-associated mortality worldwide. An estimated 1.8 million incident lung cancer cases occurred in 2012, accounting for ~13% of total cancer diagnoses (1). As indicated by the Global Burden of Disease study 2020, the health care burden and costs related to lung cancer are significant on a global scale (2). Lung cancer is categorized into two primary histological types: small cell lung cancer (SCLC) and non-small cell lung cancer (NSCLC). NSCLC is additionally divided into adenocarcinoma (AD), squamous cell carcinoma (SCC) and large cell carcinoma (LCC). Approximately 85% of lung cancer cases are NSCLC and SCLC accounts for approximately 15% of cases (3). The major etiological factors of lung cancer are smoking and air pollution. Although smoking is one of the most important causes of lung cancer, however ~25% of lung cancer cases are observed in never-smokers worldwide in 2013 (4). If lung cancer in non-smokers is considered as a separate disease, this malignancy ranks seventh among the fatal types of cancer worldwide (5). Air pollution induces more than 200,000 lung cancer deaths globally (6). The International Agency for Research on Cancer (IARC), World Health Organization, has classified air pollution as Group 1 carcinogenic agent for humans (7,8). In addition, industrial developments have increased air pollutant concentrations in certain regions, cities, and countries, particularly in developing countries (8). For example, air pollution has become the fourth greatest threat to the health in the Chinese population; 350,000–500,000 Chinese people succumb prematurely each year due to air pollution (9). According to the latest statistics on cancer in China in 2017, lung cancer has become the malignant tumor with the highest morbidity and mortality rates in China, and these high progression rate is more severe due to increasingly high levels of air pollution compared with previous cases in developing countries and in other regions (10,11). However, the molecular characteristics of air pollution-related lung cancer remain poorly understood. Xuanwei City and Fuyuan County in Yunnan Province in China are heavily air-polluted regions, with particularly high lung cancer rates among smokers and non-smokers; as such, these regions are considered good models to investigate air pollution-related lung cancer (11-13). In Xuanwei and Fuyuan, the lung cancer incidence is 4–5 times higher compared to the national average; with high prevalence rate in non-smoking females. The high risk is attributed to exposure to indoor and outdoor air pollution caused by smoky coal burning. In smoky coal burning, high concentrations of carcinogenic substances, including fine particulate matter (PM; ≤2.5 µm in diameter, PM2.5) and coarse PM (≤10 µm in diameter, PM10), and polycyclic aromatic hydrocarbons (PAHs), are released (13,14). The data from Xuanwei have been cited in the IARC monograph (6); and indoor emissions from household coal combustion are classified as carcinogenic to human health (Group 1).

The accumulation of genetic alterations or specifically hazardous mutations in vital genes, which control critical cellular processes, including growth, proliferation, differentiation, and survival, is considered as a major cause of oncogenesis (15). Certain harmful genetic changes may be inherited as hereditary factors from parents, while most of the changes may manifested as somatic mutations, frequently and predominantly caused by random errors during DNA replication and environmental carcinogens (16). Therefore, these genetic changes should be investigated to understand carcinogenesis, and to diagnose, treat, and prevent cancers. The number of identified oncogene drivers of lung cancer has increased in previous decades; these oncogene drivers include epidermal growth factor receptor (EGFR), tumor protein 53 (TP53), v-Raf murine sarcoma viral oncogene homolog B (BRAF), v-Ki-Ras2 Kirsten rat sarcoma viral oncogene homolog (KRAS), and human epidermal growth factor receptor 2 (HER2), as well as anaplastic lymphoma kinase (ALK) and ROS proto-oncogene 1 (ROS1) gene rearrangements (17). Certain oncogenes function as good therapeutic targets, in addition to oncogenic drivers in carcinogenesis. Patients with specific genetic alterations exhibit increased sensitivity to targeted therapy than to other therapeutic strategies (18,19). For example, patients are responsive to EGFR-targeted therapies, including erlotinib and gefitinib treatments which results in marked antitumor activity in patients due to EGFR overexpression (20); patients are sensitive to Herceptin (trastuzumab) treatment due to HER2 overexpression (18); similarly, patients are responsive to crizotinib treatment and exhibit significantly improved progression free survival rates due to mutations leading to gene fusions in the echinoderm microtubule associated protein-like 4 (EML4)-ALK (19).

Comprehensive profiles of certain genes including EGFR, K-RAS and TP53 have been studied in air pollution-related lung cancer in Xuanwei and Fuyuan (16,20,21); therefore, the present study excluded these genes from additional screening. In the present study, lung cancer samples were obtained from Chinese populations in Xuanwei and Fuyuan to investigate the molecular features of air pollution-related lung cancer. HER2, BRAF, and EML4-ALK and cluster of differentiation 74-ROS1 (CD74-ROS1) fusion genes, were selected from a group of known oncogene drivers, as they are clinically important oncogenes, and molecular-targeted medicines are available for therapies. At present, numerous techniques have been developed to enhance the screening of these oncogenes. For instance, fluorescence in situ hybridization (FISH) and immunohistochemistry (IHC) are conventional methods to detect these genetic changes, however these methods exhibit limitations in clinical practice (22,23). Therefore, more effective and economical screening tools are necessary to easily examine these oncogenes. Polymerase chain reaction (PCR)-based tests provide several advantages compared to FISH and IHC; for example, large number of samples can be processed in a single round of testing, these techniques can be easily performed and few facilities are required; PCR-based tests are also rapid and economical (24-26). Thus, in the present study, a combination of reverse transcriptase PCR (RT-PCR) and DNA sequencing was applied to examine the expression, mutations, and fusions of target genes. This study primarily aims to define the status of clinically significant oncogenes in air pollution-related lung cancers, and to establish a simple and sensitive test to screen patients with particular genetic changes.


Cell culture

A total of 13 cell lines, comprising 11 cancerous and two immortal human bronchial epithelial cell lines (16HBE and Beas-2B), were used in the present study. The 11 lung cancer cell lines included AD (SPC-A-1, GLC-82, A549, XLA-07, XL-JT), SCC (EPLC-32M1), LCC (801D, NCI-H460, 95-D), mucoepidermoid lung carcinoma (NCI-H292), and SCLC (NCI-H446). The Xuanwei lung cancer cell line (XL-JT) was identified using short tandem repeat typing (27). All 11 cancer cell lines were cultured in RPMI-1640 (GE Healthcare Life Sciences, Logan, UT, USA) and the two immortal human bronchial epithelial cell lines were cultured in Dulbecco’s modified Eagle’s medium (GE Healthcare Life Sciences) with 10% fetal bovine serum (Thermo Fisher Scientific, Waltham, MA, USA) and incubated at 37 °C in a humidified atmosphere of 5% CO2.

Clinical samples

Primary lung tumor and adjacent non-malignant tissue samples were collected from the Yunnan First People’s Hospital and the Yunnan Tumor Hospital, Kunming from March 2006 to January 2015; all the samples were obtained from the patients who provided written informed consent. None of the patients had undergone chemotherapy or radiotherapy prior to surgery. The tissue samples were stored in liquid nitrogen at the time of resection. A second pathological diagnosis additionally confirmed the histological characteristics of the tumors in accordance with the WHO classification (3). The hematoxylin-eosin-stained sections were observed through light microscopy to evaluate the cancer cell ratio and the necrosis rate. All tumor samples that comprised >70% cancer cells and exhibited <10% necrosis were included in the study. All of the selected patients resided in Xuanwei City and Fuyuan County in Yunnan Province, China. This whole geographical area was divided into three regions: A (heavily polluted; >170 ng/m3), B (moderate; 60–170 ng/m3), and C (less polluted; <60 ng/m3), according to concentration of indoor and outdoor benzo(a)pyrene (Bap; the best index of PAHs carcinogenicity) (14,16,27,28). The age of the patients ranged from 34–76 years, with median age of 55 years. As being a smoker or living in highly polluted area may increase exposure of the respiratory system to high level of air carcinogens, subjective behavior (smoking) and objective factors (air pollution) were combined to determine total exposure degree in the present study. The groups of high total exposure included patients living in more polluted region, regions A and B, and/or smokers, while the group of low total exposure included patients reside in the relatively clean region C and non-smokers. This study was approved by the Ethics Committee for Human Medicine Research at the Kunming Institute of Zoology, Chinese Academy of Sciences (Permit Number: SYDW-2012010). All patient records and information were anonymized and de-identified prior to analysis. Research was conducted in accordance with the principles of the Declaration of Helsinki (as revised in 2013).

Reverse transcriptase PCR (RT-PCR)

Total RNA was extracted from the tissues and the cell lines by using TRIzol reagent (Invitrogen, Carlsbad, CA, USA) and concentration was measured at 260 and 280 nm using a spectrophotometer (Bio-Rad Laboratories, Hercules, CA, USA); then, 2 µg total RNA was reverse-transcribed into a single-stranded cDNA by using a reverse transcription kit (Promega Corporation, Madison, WI, USA). A total of 1 µg cDNA was used as a template, and RT-PCR was then performed to examine the expression of HER2 and the prevalence of EML4-ALK and CD74-ROS1 fusion genes. The details of all the oligonucleotide primers for PCR and sequencing are summarized in Table 1. PCR primers were also used for sequencing; however, a separate set of sequencing primer were used for the genotyping of HER2 and BRAF genes. PCR amplification was performed in a Bio-Rad thermocycler (Bio-Rad Laboratories) with 1 cycle of denaturation at 95 °C for 5 min, followed by 35 cycles of 95 °C for 1 min, annealing at 55–60 °C for 30 sec and extension at 72 °C for 1 min. Final extension was performed at 72 °C for 10 min. The RT-PCR products were analyzed through 1% agarose gel electrophoresis and stained with ethidium bromide. GAPDH was used as an internal control. Positive results were repeated in triplicate to confirm the results.

Table 1
Table 1 Primer information for RT-PCR in this study
Full table

HER2, BRAF, and EML4-ALK were amplified in a 25 µL reaction mixture using a Taq Polymerase from Thermus aquaticus kit (Sigma-Aldrich, Darmstadt, Germany); the mixture contained 0.5 µL each of forward and reverse primers (10 µM), 1.5 µL cDNA template and H2O was added to obtain the final reaction volume. In addition, 2 µL of 5 M betaine (Sigma-Aldrich) was added to facilitate an enhanced amplification of EML4-ALK. To facilitate an enhanced amplification of CD74-ROS1, a Taq PCR kit (cat. No., E5000S; New England Biolabs, Ipswich, MA, USA) was used, with a reaction volume of 25 µL comprising 1.5 µL cDNA template and 0.5 µL (10 µM) each of forward and reverse primers.

DNA sequencing

The PCR products were sequenced to detect the gene mutation in HER2 and BRAF. Sequencing was performed in forward and reverse direction using the PCR products. Sequencing was conducted by BGI Tech Solutions Co., Ltd. (Shenzhen, China). Sequencing results were analyzed using the Basic Local Alignment Search Tool online database ( accessed in May 2015) and sequencing data analysis software. BioEdit (version 7.0.9; Abbott Pharmaceutical Co., Lake Bluff, IL, UAS) and SeqMan NGen (version 11.2.1; DNASTAR, Madison, WI, USA) were used as sequence analyzing tools in the present study.

Statistical analysis

Numerical data were expressed as the mean ± standard deviation. Chi-square test and Fisher’s exact test were used to evaluate the statistical significance of the mutations with biological parameters using SPSS 17.0 (SPSS, Chicago, IL, USA). The P values were calculated based on two-sided hypothesis. P<0.05 was considered to indicate a statistically significant difference.


Expression and gene mutation of HER2 in air pollution-related lung cancer

Of the 82 tissue samples, 17 cancer samples exhibited the HER2 overexpression (Table 2). In the present study, the target gene was amplified in tumor specimens but not in the corresponding non-malignant counterparts. PCR amplification yielded clear bright bands with a fragment size of ~1,100 bp (Figure 1A). DNA sequencing analysis confirmed the specificity of amplicon; the result also revealed one positive case exhibited the HER2 mutation (insertion); the tissue sample of a female non-smoker aged 48 years and with a well-differentiated adenocarcinoma exhibited a novel 2866–2867 GGGCTCCCCG insertion in exon 20 (Figure 1B). This female patient resides in the clean region C. Additionally, HER2 overexpression was not statistically associated with air pollution levels, smoking status or total exposure degrees (Figure 2). Of the 13 cell lines, five lung cancer cell lines (A549, 95D, NCI-H446, NCI-H460 and SPC-A1) demonstrated HER2 upregulation, but the target gene failed to amplify from the cDNA of normal bronchial epithelial cell lines (Table 3).

Table 2
Table 2 Association of HER2 overexpression, as well as EML4-ALK and CD74-ROS1 fusion with clinical features
Full table
Figure 1 RT-PCR and DNA sequencing analyses of HER2 expression and mutations. (A) Electrophoresis results of HER2 overexpression in tumor samples using RT-PCR; (B) sequencing result of the novel mutation detected in a female patient with lung adenocarcinoma. P14, P58, P71, P86, and P92 represent sample numbers. RT-PCR, reverse transcription polymerase chain reaction; HER2, human epidermal growth factor receptor.

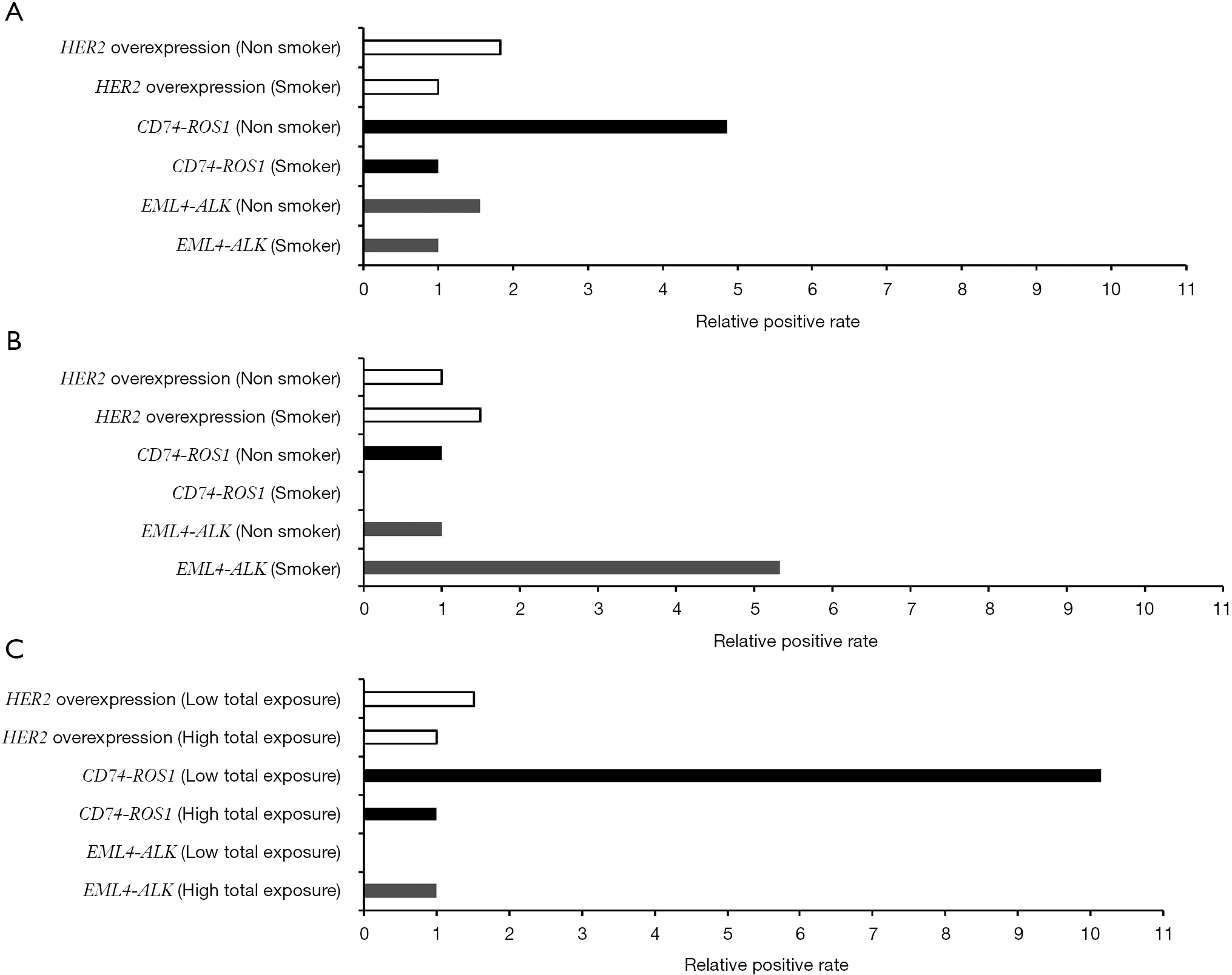

Figure 2 Association of HER2 overexpression, and EML4-ALK and CD74-ROS1 fusion genes with air pollution (A), smoking (B), and total exposure (C). Low air pollution, living in relatively clean region C (Bap concentration, <60 ng/m3); High air pollution, living in heavily polluted regions A (Bap concentration, >170 ng/m3)/B (Bap concentration, 60–170 ng/m3). Low total exposure, living in relatively clean region C and also non-smoking; high total exposure, living in heavily polluted regions A/B or smoking. HER2, human epidermal growth factor receptor; EML4-ALK, echinoderm microtubule-associated protein-like 4-anaplastic lymphoma kinase; CD74-ROS1, cluster of differentiation 74-ROS proto-oncogene 1; Bap, benzo(a)pyrene.
Table 3
Table 3 Oncogenic alterations of cell lines included in the study
Full table

BRAF mutation in air pollution-related lung cancer

All the 82 tissue samples and 13 cell lines were sequenced to identify BRAF mutation. However, no mutation was identified in any tissue sample and cell lines.

EML4-ALK fusion in air pollution-related lung cancer

There are 15 different EML4-ALK fusion transcript variants identified to data (30). In the present study, all the tissue samples and the cell lines were screened to determine different variants of EML4-ALK gene fusion. Overall, 6.1% (5/82) of the tumor samples were positive for the EML4-ALK fusion and only two variants were detected (Table 2). A total of two cases were positive for EML4-E2+ALK-E20. The electrophoresis results revealed a clear and specific amplicon of 550 bp; therefore, the product was variant 5b. A total of three cases (3.66%) were also positive for EML4-E13 + ALK-E20. The amplification product of 1,100 bp confirmed that these cases are variant 2 (Figure 3A,B). This fusion gene was more commonly identified in young male smokers (Table 2). The EML4-ALK fusion gene was not detected in the normal lung tissues adjacent to cancer tissues. Although the EML4-ALK fusion gene was not statistically associated with air pollution levels and smoking status (P=0.1), all the five cases occurred either in smokers or in patients from the most air-polluted region A, and no positive cases were detected in non-smokers or patients from the relatively clean regions (Figure 3). The only cell line identified as positive for EML4-E2 + ALK-E20 was the LCC cell line (NCI-H446; Table 3).

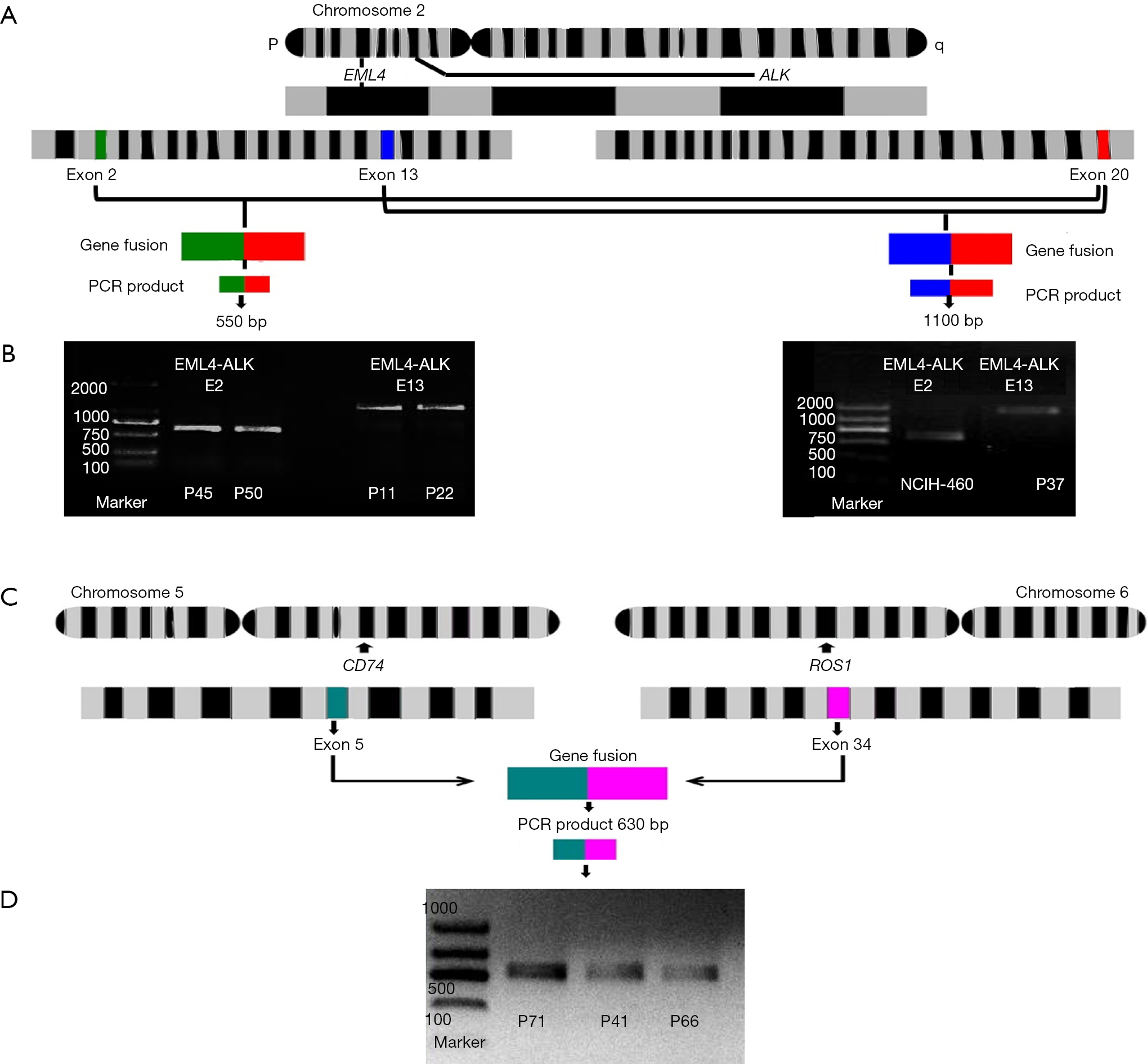

Figure 3 RT-PCR analysis of EML4-ALK and CD74-ROS1 fusion genes. (A) Graphical representation of EML4-ALK fusion gene; (B) electrophoresis results of EML4-ALK fusion gene in tumor tissue samples and cell line. Fragment size of 550 bp represent variant 5b in EML4-E2+ALK-E20, whereas fragment size of 1,100 bp represent variant 2 in EML4-E13+ALK-E20; (C) graphical representation of CD74-ROS1 fusion gene; (D) electrophoresis results of CD74-ROS1 fusion gene in tumor samples. RT-PCR, reverse transcription polymerase chain reaction; EML4-ALK, echinoderm microtubule-associated protein-like 4-anaplastic lymphoma kinase; CD74-ROS1, cluster of differentiation 74-ROS proto-oncogene 1. E, exon. P45, P50, P11, P22, P37, P71, P41, and P66 represent sample numbers.

CD74-ROS1 fusion gene in air pollution-related lung cancer

CD74-ROS1 gene fusion events were detected in 3.6% (3/82) of the tumor samples; by contrast, CD74-ROS1 was not detected in the normal tissues adjacent to the cancer tissues. The amplicon size 630 bp indicated the fusion of CD74-E6 + ROS1-E34 (Figure 3C,D). Notably, all three CD74-ROS1-positive patients were female non-smokers; two of them diagnosed as lung adenocarcinoma and one as SCC (Table 2). However, no statistical significance was observed between smokers and non-smokers, or between low total exposure and high total exposure groups (Figure 2). No CD74-ROS1-positive cell line was detected (Table 3).


The incidence of air pollution-related lung cancer has increased over the previous three decades, particularly in China (11,31). Air pollution-related lung cancer has been considered as a deteriorating public health problem in China, particularly in highly polluted regions including Xuanwei and Fuyuan. These regions yield high indoor and outdoor air pollution levels because of smoky coal burning; furthermore, the prevalence of lung cancer in these regions is associated with air pollution. Moreover, the incidence of lung cancer among non-smoking female in Xuanwei is one of the highest rates worldwide (11-13). Thus, lung cancer in Xuanwei and Fuyuan populations provides a very good model to investigate air pollution-related lung cancer. Elucidating the molecular mechanisms of lung cancer occurrence in Xuanwei population would provide great significance for the clinical treatment of lung cancer. In addition, the majority of patients with lung AD who are East Asian never-smokers may potentially benefit from targeted therapy (32). Therefore, clinically significant genetic changes in HER2, BRAF, EML4-ALK, and CD74-ROS1 in the lung cancer cases in Xuanwei and Fuyuan were examined through a combination of RT-PCR and DNA sequencing in the present study.

HER2, also known as ErbB2 receptor tyrosine kinase 2, is a member of the ErbB family of receptor tyrosine kinases. HER2 has a critical role in cellular growth, proliferation, differentiation, apoptosis, and survival (33). In previous studies, HER2 mutations were observed in 0−4% of NSCLCs; these mutations primarily involved insertions in exon 20 (25,34-36). Additionally, the HER2 kinase domain mutation rates are more frequent in female non- or light-smokers with lung AD compared with in other individuals (34,35). HER2 mutations are associated with the overexpression of the HER2 protein and are considered as driver mutations in lung carcinogenesis (34). In the present study, a female non-smoker with lung AD in region C was identified with a 9 bp novel insertion GGGCTCCCCG at 2866–2867 in exon 20. The adjacent non-malignant lung tissue presented a wild-type sequence of the HER2 gene; this result confirmed that this mutation was somatic. The complete HER2 data from the present study indicated that the HER2 mutation may be one of the driver mutations in lung cancer and may serve an active role in the development of lung cancer. In Xuanwei, the concentration of Bap (the optimal index of PAH carcinogenicity) is higher than the national criterion for China due to air pollution (14). PAHs can directly bind to DNA, form DNA adducts, and induce gene mutations. A previous study confirmed the existence of PAH-DNA adducts in female patients with lung cancer in Xuanwei (11,37). In our previous study, 167 genes exhibited significantly higher mutation frequencies in patients from Xuanwei and Fuyuan compared with patients from control regions, and mutation rates of 70 genes were associated with the BaP exposure of patients (16); MUC16 mutations potentially associated with air pollution may participate in the development and progression of air pollution-related lung cancer (28). However, in the current study, it appeared that the HER2 mutation was not associated with BaP exposure. Furthermore, it was identified using RT-PCR that 17 cases of the lung cancer over-expressed HER2; by contrast, one of the 17 cases exhibited a HER2 mutation. This finding suggested that numerous genetic mechanisms, including gene overrepresentation, translational and post-translational mechanisms, and gene mutation, may be responsible for HER2 overexpression. In the present study, we also observed that HER2 overexpression was not associated with air pollution levels, smoking status, or total exposure degrees. Interestingly, the germline point mutation of HER2 (G660D) has been detected in non-smoker relatives with multigenerational lung AD in Japan (38). However, the germline mutation of HER2 was not found in familial lung cancer samples obtained from the Chinese population in highly air-polluted regions, Xuanwei and Fuyuan (39). Thus, we hypothesized that the HER2 mutation and HER2 overexpression may not be associated with BaP exposure. Nevertheless, the mechanisms underlying the HER2 mutation and overexpression in lung cancer require further investigated.

HER2 functions not only as a driver oncogene but also as a good target of personalized treatments. Patients with overexpressed HER2 tumors exhibit sensitivity to Herceptin, which is a monoclonal antibody targeting HER2 (25). HER2-targeted therapy has been successfully administered to treat breast, lung, and gastric cancer; and successful anti-tumor treatment with Herceptin is markedly associated with the HER2 overexpression in tumors (25,40,41). Therefore, the examination of the HER2 expression level is a valuable test to screen patients for HER2-targeted therapy. Although FISH and IHC are commonly used in hospitals and laboratories for this particular examination, these methods have limitations at different levels (26). In the present study, RT-PCR was performed to evaluate the HER2 expression of the patients with lung cancer from Xuanwei and Fuyuan. The RT-PCR results demonstrated that 20.7% (17/82) of the patients with lung cancer exhibited an upregulated HER2 expression. In addition, the HER2 overexpression was more prevalent in females, smokers, and patients with lung AD compared with other patients. The results of the present study are consistent with other published observations through IHC and quantitative RT-PCR (qRT-PCR); in particular, previous studies revealed that the HER2 overexpression was identified in 20% (29), 34.9% (42) and 61.1% (43) of NSCLC using IHC, qRT-PCR and NGS (next generation sequencing), respectively. On the basis of these data, we hypothesized that: (I) certain lung cancer cases in Xuanwei and Fuyuan overexpressed HER2 in the same manner as the other lung cancer types; and (II) the HER2 expression level of the patients in Xuanwei and Fuyuan can be screened through RT-PCR-based methods. Consequently, the patients with HER2 overexpression may be effectively treated with appropriate therapies or clinical trials via effective screening, and therefore, patient survival may be improved. Although the association between the HER2 overexpression and the air pollution was not observed, in view of its high prevalence (20%) in air pollution-related lung cancer, it is worthwhile to screen patients for HER2 overexpression in this fatal disease for treatment guidelines. HER2 screening will be performed in cooperation with clinicians in hospitals in areas with high air pollution and high incidence of lung cancer in China. The mRNA overexpression of HER2 has been associated with prognosis of NSCLC (18,42). Levels of HER2 mRNA may also be evaluated through qRT-PCR to determine the prognosis of patients with lung cancer.

HER2 and BRAF encode proteins in the EGFR-signaling pathway; members of this pathway account for >50% of somatic mutations in lung AD (44). Nevertheless, the estimated frequency of BRAF mutations is quite low in lung cancer. Several studies have demonstrated that the common BRAF mutation prevalence rate in populations with NSCLC is 1–4% (44,45), whereas a study in Caucasian patients revealed a higher prevalence rate of ~9% (46). In addition, BRAF mutations were predominantly found in current or past smokers with lung AD (45). In the present study, the BRAF mutation was not detected in patients with lung cancer, similar to other published data that identified no mutation in the BRAF gene of Asian non-smokers with lung cancer (20,32). BRAF mutations are potentially more common in lung cancer caused by smoking and are less prevalent in air pollution-related lung cancer.

The EML4-ALK fusion gene has been identified in lung cancer and several variants have been characterized to date (30,47). This fusion gene potentially participates in lung carcinogenesis (47). In the present study, two variants of the EML4-ALK fusion gene were exhibited in 6% of patients with lung cancer in Xuanwei and Fuyuan. Furthermore, the present study also revealed that the patients harboring the EML4-ALK fusion gene were considerably younger compared with those without the fusion gene, which is similar to data from previous studies (48,49). An additional study conducted in China identified that 5.8% (3/52) of lung cancer samples from non-smokers harbored this fusion gene (32). However, in the present study, EML4-ALK was detected to be more prevalent in smokers (10.8%) compared with non-smokers (2.2%). Notably, all the five cases occurred either in smokers or in patients from the most polluted region A; their respiratory system were considered to have suffered the highest levels of exposure to air carcinogens. Although the association between the exposure to air carcinogens and EML4-ALK fusion did not reached statistical significance, the effect of air carcinogens on the gene fusion should be considered.

Interestingly, previous studies identified ALK rearrangements primarily in lung AD (32,46); by contrast, the present study identified that the three cases of SCC also harbored the EML4-ALK fusion gene. The EML4-ALK fusion protein is among the most recent molecular targets of NSCLC therapy. Crizotinib, a small-molecule inhibitor designed for EML4-ALK fusion protein, yields an effective therapeutic outcome for patients with EML4-ALK (30). In the present study, 5 out of the 82 patients were positive for EML4-ALK; therefore, these patients may be treated with crizotinib. The present study also emphasized that the PCR-based test could detect not only the existence of fusion genes but also their different variants, which may affect responses to targeted inhibitors (48-50). Thus, the screening of the EML4-ALK fusion gene in air pollution-related lung cancer through RT-PCR may guide treatment.

CD74-ROS1 gene rearrangement is a novel oncogenic driver mutation. In the present study, the prevalence of this fusion in patients with lung cancer patients in Xuanwei and Fuyuan is 3.6% (3/82). The results of the present study indicated that CD74-ROS1-positive cases are more prevalent in non-smokers (6.6%) and females (9.1%). Similarly, ROS1 rearrangements in NSCLCs have been demonstrated to be more prevalent in young non-smokers as compared with smokers with lung AD (51). Furthermore, two out of three samples were positive for CD74-ROS1 fusion gene in the low total exposure group. Although the difference was not statistically significant due to the small number of positive cases, the observation indicated that air carcinogens may serve a minor role in the gene fusion event. The present study is only a pilot study, and further studies are required to achieve final conclusions.

Environmental pollution may induce its signature spectrum of oncogene mutations. However, air is fluid and it is able to affect a large area; therefore, air pollution-associated mutations may be etiologically and clinically different from patterns of mutations induced by other environmental sources of carcinogens, including food, habits or occupational exposure, which may have more individual effects that are limited to certain types of mutation (16,20). In addition, air pollution comprises a complicated mixture of chemicals that waft from sources ranging from factories to lawnmowers, and the components of air pollution differ in various regions (5,10). Therefore, the spectrum of oncogene mutations caused by air pollution is extremely complex and requires extensive studies to demonstrate associations. Finally, air pollution and smoking collectively effect population, for examples: a smoker living in a clean region is exposed to carcinogens of a higher concentration due to smoking as compared with the non-smoker from a clean region, while a non-smoker living in a heavily polluted area is inevitably affected by higher level of air carcinogens as compared with the non-smoker from a clean region. Therefore, smoking and air pollution should be jointly considered in researches.


Several oncogenic alterations, including HER2 overexpression and mutation, and EML4-ALK and CD74-ROS1 fusion genes, were detected in air pollution-related lung cancer in Xuanwei and Fuyuan. These genetic alterations may be associated with air pollution-induced lung carcinogenesis; conversely, they may serve as molecular targets for personalized therapies. Therefore, the present study proposed that Herceptin and crizotinib could also be used in patients with air-pollution related lung cancer with HER2 overexpression and EML4-ALK fusion genes, respectively; and that RT-PCR-based test may be a useful tool to screen these genetic alterations in clinical application.


The authors gratefully acknowledge Dr. Hongbin Ji (Shanghai Institute of Biological Sciences, Chinese Academy of Sciences, Beijing) for providing the idea to write the current article. We thank Dr. Ping Wang (Department of Surgery, Yunnan First People’s Hospital) and Dr. Yun-Chao Huang (Department of Thoracic and Cardiovascular Surgery, Yunnan Tumor Hospital) for providing the surgical samples.

Funding: This study was supported by the Natural Science Foundation of China (grant number 81272617), the 973 Program (grant number 2011CB510104), the Special Fund for Local Science and Technology Development Guided by the Chinese Government (grant number 2018L3011) and sponsored by Chinese Academy of Sciences-the World Academy of Sciences President’s Fellowship for International PhD Students (MK).


Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was approved by the Ethics Committee for Human Medicine Research at the Kunming Institute of Zoology, Chinese Academy of Sciences (Permit Number: SYDW-2012010). All patient records and information were anonymized and de-identified prior to analysis. Research was conducted in accordance with the principles of the Declaration of Helsinki (as revised in 2013). Informed consent was taken from all individual participants.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See:
