PD-1 inhibitor combined with apatinib for advanced gastric or esophagogastric junction cancer: a retrospective study

Qing Wei1,2#, Xing Yuan1,2#, Jingjing Li1,2, Qi Xu1,2, Jieer Ying1,2

1Department of Abdominal Medical Oncology, Cancer Hospital of the University of Chinese Academy of Sciences (Zhejiang Cancer Hospital), Hangzhou, China; 2Institute of Cancer and Basic Medicine (ICBM), Chinese Academy of Sciences, Hangzhou, China

Contributions: (I) Conception and design: Q Wei, X Yuan, J Ying; (II)Administrative support: J Li, Q Xu; (III) Provision of study materials or patients: All authors; (IV) Collection and assembly of data: All authors; (V) Data analysis and interpretation: Q Wei, X Yuan; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

Correspondence to: Jieer Ying; Qi Xu. Department of Abdominal Medical Oncology, Cancer Hospital of the University of Chinese Academy of Sciences (Zhejiang Cancer Hospital), Hangzhou, China; Institute of Cancer and Basic Medicine (ICBM), Chinese Academy of Sciences, Hangzhou, China. Email: jieerying@aliyun.com; hzxuqi@sina.cn.

Background: Nivolumab and pembrolizumab were approved as immune checkpoint inhibitors for third-line treatment of advanced gastric or esophagogastric junction cancer (GC/EGJC) in 2017. However, immunotherapy monotherapy has low efficacy. Apatinib has been proven effective in advanced GC/EGJC. Numerous studies have shown that immunotherapy has a synergistic effect when combined with targeted drug therapy. Based on these facts and to assess the efficacy and safety of programmed death 1 (PD-1) inhibitor and apatinib as combination therapy in patients (pts) with unresectable locally advanced or metastatic GC/EGJC, a retrospective clinical research study was carried out.

Methods: Pts (n=24) received PD-1 inhibitor and apatinib (250 mg once daily) as second- or third-line therapy in this observational, retrospective study. The primary objectives were efficacy and safety.

Results: At data cut-off (December 31, 2019), 24 pts were enrolled. Of the 19 pts who were evaluable, the objective response rate (ORR) was 26.3% (5/19), the median progression-free survival (PFS) was 3.0 (95% CI: 1.3 to 4.7) months, and the median overall survival (OS) was not reached. Grade 3 or 4 treatment-related adverse events (TRAEs) occurred in 3 (15.8%) of the 19 pts. These adverse events (AEs) included pruritus, rash, hand-foot syndrome, and increased aspartate aminotransferase (AST) or alanine aminotransferase (ALT). No treatment-related deaths occurred.

Conclusions: Combination therapy of PD-1 inhibitor and apatinib showed encouraging clinical activity and demonstrated tolerable toxicity in pts with advanced GC/EGJC. Hence, our work provide rationale for the combination of PD-1 inhibitor and apatinib in advanced GC/EGJC.

Keywords: Programmed death 1 (PD-1); gastric cancer (GC); immune checkpoint inhibitors; immunotherapy; apatinib

Submitted Mar 04, 2020. Accepted for publication Jul 14, 2020.

doi: 10.21037/tcr-20-1333


Gastric or esophagogastric junction cancer (GC/EGJC) is the third leading cause of cancer-related deaths worldwide, with most of the cases diagnosed at late stages (1,2). For patients (pts) with unresectable or recurrent advanced GC/EGJC, systemic chemotherapy is the most important method used to prolong survival (3). However, research data indicate that the objective response rate (ORR) ranges from 6.8–25% and the progression-free survival (PFS) was 1.5–5.3 months in second­ or further lines therapy (4-6), showing a poor prognosis. With this background, new clinical treatment approaches for advanced GC/EGJC are urgently needed, particularly in later lines. Immune checkpoint inhibitors have been shown to be effective in treating GC through blocking the interaction between programmed cell death-1 (PD-1) and its ligand (PD-L1) (7,8). Of these, nivolumab and pembrolizumab, were approved as third-line therapies for advanced GC/EGJC in 2017. However, only about 10% of advanced GC/EGJC patients benefit from monotherapy overall (9,10). Therefore, to extend the benefit to a larger population, the development of innovative strategies such as combining PD-1/PD-L1 blockade with conventional treatments is urgently needed in advanced GC/EGJC.

In recent years, studies have shown that immunotherapy has a synergistic effect when combined with molecular antiangiogenic agents (11,12). Anti-angiogenesis is a well-established tumor microenvironment (TME) targeted therapy in GC/EGJC. Combining PD-1/PD-L1 blockade with agents that can eliminate the preexisting immunosuppression of TME may overcome the primary resistance in patients with advanced GC/EGJC (13-15). Moreover, in preliminary results from an open-label clinical trial, with a combination of anti-PD-1 antibody and VEGFR1-3 inhibitor, nivolumab plus regorafenib achieved an ORR of 44% (5/9) in pts with pretreated GC (16), which provides rationale to apply immunotherapy combined with molecular antiangiogenic agents for GC/EGJC.

Apatinib, a small-molecule anti-angiogenesis targeted drug, has been approved as third-line or above therapy for pts with advanced GC/EGJC in China (17). In in vitro studies, apatinib and PD-1 inhibitor have shown complementary anti-tumor effects (18,19). Based on these results, we carried out a retrospective clinical research study to assess the value of clinical application of PD-1 inhibitor and apatinib as combination therapy in pts with advanced GC/EGJC. We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/tcr-20-1333).


Study population

Our study collected 24 pts with histologically confirmed, unresectable locally advanced or metastatic HER2-negative GC/EGJC treated with PD-1 inhibitor combined with apatinib in Zhejiang Cancer Hospital from May 2018 to May 2019. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee of Zhejiang Cancer Hospital (IRB-2019-155) and written informed consent was obtained from all patients. The Eastern Cooperative Oncology Group (ECOG) performance status of 0–2 was selected. Other inclusion criteria included PD-1 inhibitor combined with apatinib for more than two cycles, and at least one target lesion that could be measured by imaging. Pts with autoimmune diseases and who had received any PD-1, PD-L1, or other drug immunotherapy were excluded. Further details are shown in Table 1.

Table 1
Table 1 Patient information and baseline characteristics
Full table

Study design and assessments

Our study is a retrospective, single-center study. Pts received apatinib at doses of 250 mg in combination with PD-1 inhibitor including SHR-1210 (200 mg Q2W), nivolumab (3 mg/kg Q2W), JS001 (240 mg Q3W), or sintilimab (200 mg Q3W). Treatment was continued until disease progression, intolerable toxicity, or other reason for termination was judged by the investigator.

The efficacy and safety of PD-1 inhibitor plus apatinib in advanced GC/EGJC pts are the primary objectives to be evaluated. Tumor assessments were performed through CT or MRI after every two cycles of treatment according to the RECIST v1.1 guideline. Observed indicators included ORRs, disease control rates (DCRs), PFS, and overall survival (OS). Adverse events (AEs) were assessed according to the Common Terminology Criteria for Adverse Events (version 4.0). If any grade ≥3 AEs occurred, apatinib or PD-1 inhibitor were discontinued until the adverse reaction returned to ≤1 degree. If the adverse reactions caused by apatinib lead to treatment delays of more than 4 weeks, apatinib was discontinued.

Statistical analysis

The distributions of PFS and OS were estimated using the Kaplan-Meier (KM) method. The statistical significance of survival curves was tested with a log-rank test. All data were analyzed by SPSS 20 statistical analysis.


Patient information and baseline characteristics

Twenty-four pts were enrolled to receive SHR-1210 (n=2), nivolumab (n=1), JS001 (n=15), or sintilimab (n=6), until the data cutoff (December 31, 2019). The median age was 60.5 (range, 30–74) years and 75% (18/24) were male. Fifteen (62.5%) pts had multiple metastatic lesions (≥3) and 58.3% (14/24) pts had undergone surgery. Of the 24 pts, 16 (66.6%) and 8 (33.4%) pts had previously received first-line treatment and more than first-line treatment, respectively. Additional details are provided in Table 1.


Of 24 pts, 19 pts were evaluable by RECIST v1.1. One patient achieved complete response (CR), four pts achieved partial response (PR), seven pts achieved stable disease (SD), and seven pts had progressive disease (PD). The ORR was 26.3% (5/19), and the DCR was 63.2% (12/19).

Median time to response was 1.7 (interquartile range, 1.6 to 2.1) months. Median duration of response was 3.0 (interquartile range, 1.8 to 3.7) months. The median PFS was 3.0 (95% CI, 1.3 to 4.7) months (Figure 1, Table 2). The median OS was not reached (Table 2).

Figure 1 KM plot of PFS. KM, Kaplan-Meier; PFS, progression-free survival.
Table 2
Table 2 Efficacy of PD-1 and apatinib combination treatment in pts with GC/EGJC
Full table

Specifically to explain the efficacy and changes in tumor regression, we show the best percentage change in lesion size of the 19 pts in our study in Figure 2A and percentage changes over time in Figure 2B.

Figure 2 Best percentage change in size of target lesion and lesion diameters over time. (A) Waterfall plot of best percentage change from baseline in size of target lesion; (B) percentage change of lesion diameters over time. GC, gastric cancer; EGJC, esophagogastric junction cancer.


Safety analysis of this study in 19 pts is as follows. Treatment-related adverse events (TRAEs) leading to discontinuation were reported in 3 (15.8%) of the 19 pts. These included liver function damage [increased aspartate aminotransferase (AST) and alanine aminotransferase (ALT)], rash and pruritus, and hand-foot syndrome. All-grade TRAEs reported in ≥5% of patients are summarized in Table 3. Relatively few grade 3 or 4 TRAEs occurred, but these included pruritus (5.3%), rash (5.3%), hand-foot syndrome (5.3%), and increased AST (5.3%) and ALT (5.3%). No treatment-related deaths occurred.

Table 3

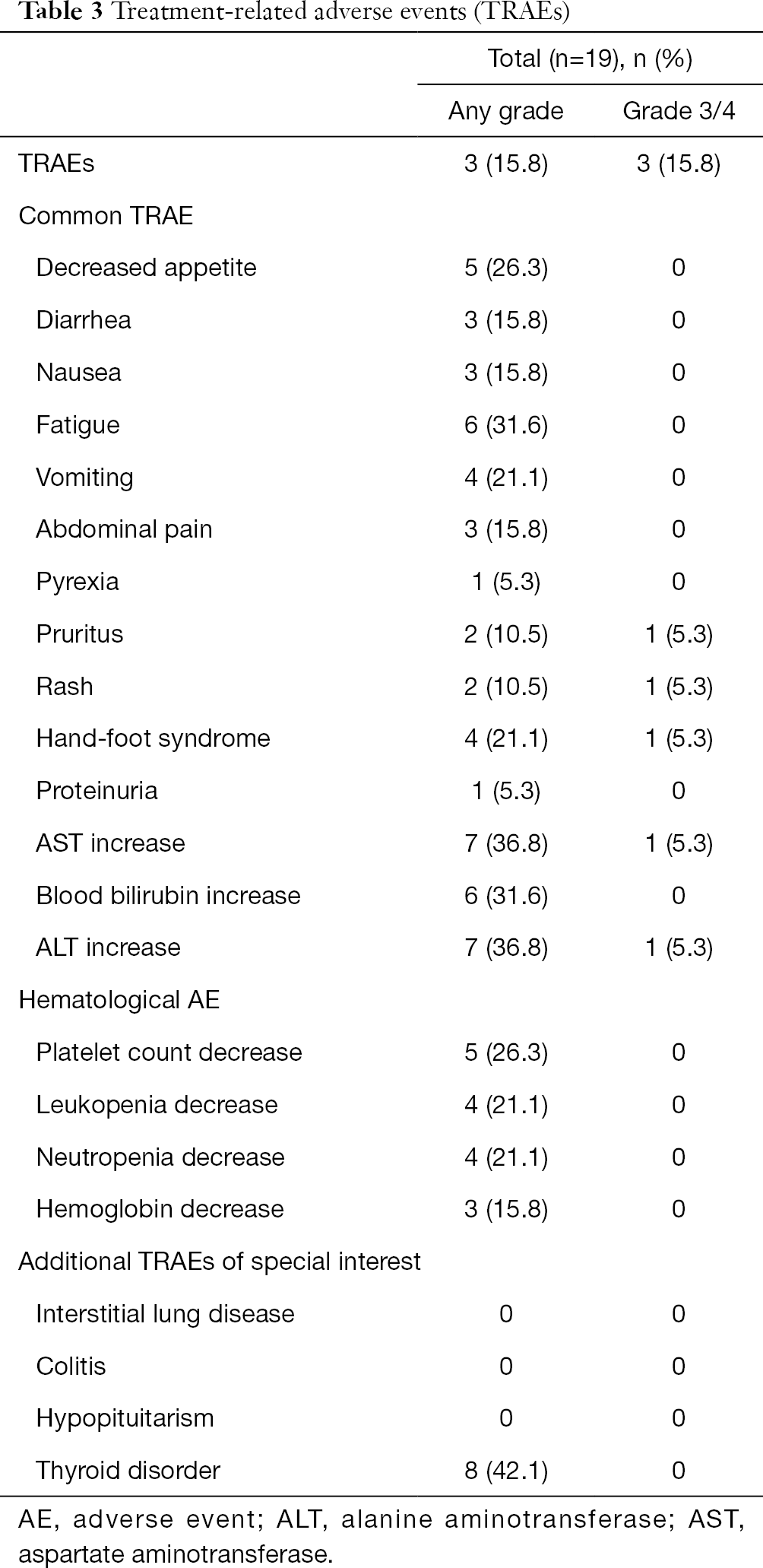

Table 3 Treatment-related adverse events (TRAEs)
Full table


In this retrospective study, the ORR following PD-1 inhibitor and apatinib combination therapy was 26.3%, and the PFS was 3.0 months. Compared with previous study results, in which that ORR ranges from 6.8–25% and the PFS was 1.5–5.3 months (4-6), a significant increase of ORR was shown. Simultaneously, DCR was observed in 63.2% (12/19) of pts in our study, with median duration of response of 3.0 (interquartile range, 1.8 to 3.7) months. Long-lasting responses existed. In a study of apatinib monotherapy for advanced GC/EGJC in third-line and above treatment, the median PFS was 2.6 months, ORR was 2.84%, and DCR was 42.05% (20). Our results show that the efficacy of PD-1 inhibitor and apatinib combination therapy turned out to be better compared to apatinib monotherapy.

Nivolumab and pembrolizumab have been approved as immune checkpoint inhibitors for third-line treatment indications for advanced GC/EGJC. But till now, the ORR of immunotherapy monotherapy is only 11–23% (21-23), which emphasizes the necessity of changing treatment options to improve efficacy. Results of this research show that PD-1 inhibitor and apatinib combination therapy improve the efficacy of treatment, mainly because first, tumor angiogenesis inhibits the extravasation of reactive T cells, which form an immunosuppressive microenvironment that leads to tumors escaping immunosurveillance. Combination therapy strengthens T-cell infiltration and activation to eliminate tumor cells (24-27). In addition, Jain et al. and Huang et al. demonstrated that anti-angiogenic therapy causes vascular normalization, mitigating hypoxia, and may allow more effective T cells to extravasate from the blood into the TME and enhance cancer immunotherapies (28,29). Moreover, anti-vascular targeted therapy apatinib may enhance anti-tumor immune responses by breaking oncogene dependence, which, in turn, causes cancer cell senescence and promotes T-cell clearance (30). Zhao and his team found that low-dose apatinib (250 mg/d) could impede the recruitment of tumor-associated macrophages, decrease TGF-β level, block tumor growth and metastasis, and eventually cause prolonged survival in mouse and in vitro models (31).

The safety profile of combination therapy in pts with advanced GC/EGJC was manageable. Adverse reactions are controllable. The types of adverse reactions were consistent with those known to be related to PD-1 inhibitor and apatinib (7,9,20,23). Thyroid disorders are associated with PD-1 inhibitor. All of the adverse effects we found were grades 1 and 2. This may be related to the possibility that PD-1 inhibitors may modulate the immune balance and stimulate their own immune potential (32). We found that hand-foot syndrome, proteinuria, decreased platelet count, leukopenia, and neutropenia were associated with apatinib. TRAEs leading to discontinuation were reported in three pts. These three pts had to discontinue treatment due to liver function damage (AST and ALT increases), rash and pruritus, and hand-foot syndrome. It seems that combination therapy leads to a slight increase in adverse reactions, including ALT and AST increases. No treatment-related deaths occurred. The combination therapy is safe and reliable in clinical application.

There were some limitations in our research. First, this report was a single-center retrospective study with insufficient sample and possibly incomplete information, resulting in recall bias. Additionally, we lacked data, including biomarkers PD-L1 and tumor mutation burden, which would have been related to the efficacy of immunological checkpoint inhibitors. We will explore this further in the future.

In conclusion, PD-1 inhibitor and apatinib combination therapy has shown encouraging clinical activity, can improve survival, and demonstrates tolerable toxicity in pts with advanced GC/EGJC as second- or third-line therapy. We expect further research, especially in the field of first-line or neoadjuvant therapy, to continue exploring the value of this combination therapy in advanced GC/ EGJC.


We thank all researchers and patients for participating in this trial.

Funding: This work was supported by Zhejiang Chinese Medicine Science and Technology Program (grant number 2018ZB022).


Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at http://dx.doi.org/10.21037/tcr-20-1333

Data Sharing Statement: Available at http://dx.doi.org/10.21037/tcr-20-1333

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/tcr-20-1333). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee of Zhejiang Cancer Hospital (IRB-2019-155) and written informed consent was obtained from all patients.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
